Insulation Piercing Connector: An In - Depth Introduction

In the dynamic field of electrical connection technology, the insulation piercing connector (IPC) has become a game - changing device, simplifying the electrical connection process and revolutionizing traditional methods.

⒈Definition and Concept

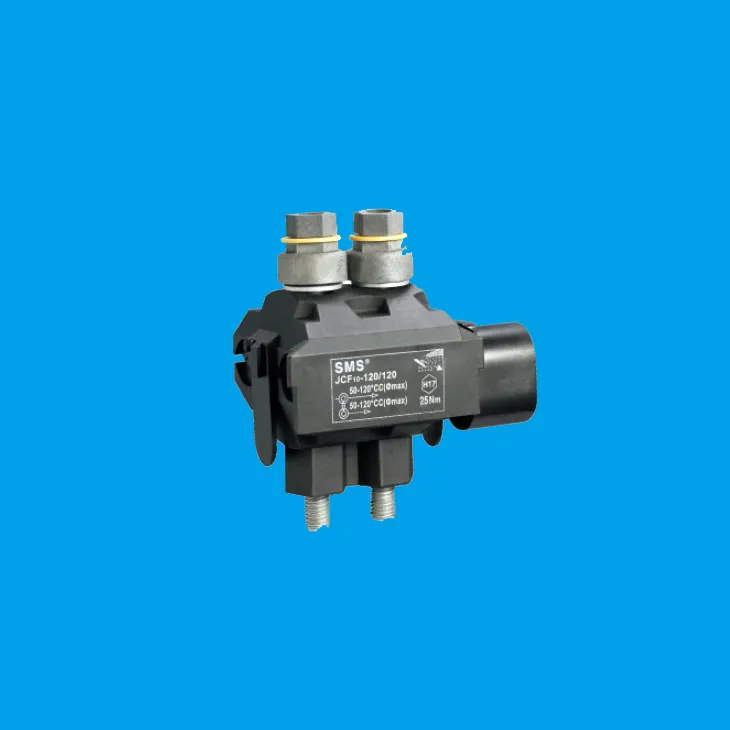

An insulation piercing connector is a specialized electrical component designed to establish an electrical connection by piercing through the insulation of a cable and directly contacting the conductor within. This innovative approach eliminates the time - consuming and often complex task of stripping the cable's insulation, streamlining the connection procedure.

⒉Structure and Working Principle
The IPC consists of two main parts: piercing elements and an insulating housing. The piercing elements, usually made of highly conductive copper or copper - alloys, are shaped into sharp - pointed teeth or blades. When installing the IPC, it is positioned over the cable at the desired connection point, and pressure is applied, either manually or through a mechanical crimping process. As the pressure increases, the sharp - pointed piercing elements penetrate the cable's insulation without removing it, establishing direct contact with the conductor. The high - conductivity of the piercing elements enables efficient electrical current transfer, and the connection design ensures a low - resistance path for the current, minimizing power losses and heat generation. The insulating housing, typically made of durable plastics like polycarbonate or nylon, not only provides mechanical protection to the piercing elements but also functions as an electrical insulator, preventing electrical leakage and ensuring connection safety. It may also have features such as locking mechanisms or strain - relief designs to enhance connection stability.

⒊Application Areas
IPCs have found wide - spread applications in various industries. In power distribution networks, they are used for connecting overhead lines, underground cables, and creating branch connections, simplifying the installation process, especially in rural areas where power lines need to be extended. In the telecommunications industry, IPCs are crucial for connecting fiber - optic cables and copper - based data cables, ensuring high - speed data transmission, as seen in 5G network infrastructure. In the automotive and aerospace industries, their lightweight design and ease of installation make them ideal for vehicle and aircraft wiring systems, especially in space - limited situations.

⒋Advantages and Limitations
IPCs offer several advantages. Their ease of installation reduces labor costs and installation time. They provide a reliable electrical connection with low resistance and high durability. Since they don't require wire - stripping, they also reduce the risk of electrical accidents caused by exposed conductors. However, they may not be suitable for all cable types or applications. Incorrect piercing can damage the cable conductor, and in high - vibration environments, the connection may loosen over time, necessitating periodic inspection and maintenance.

In summary, the insulation piercing connector is a versatile and innovative electrical component with widespread applications across various industries. Its unique design and working principle offer significant advantages in terms of installation convenience and connection reliability. Although it has some limitations, continuous technological advancements are likely to further enhance its performance and expand its application scope.
