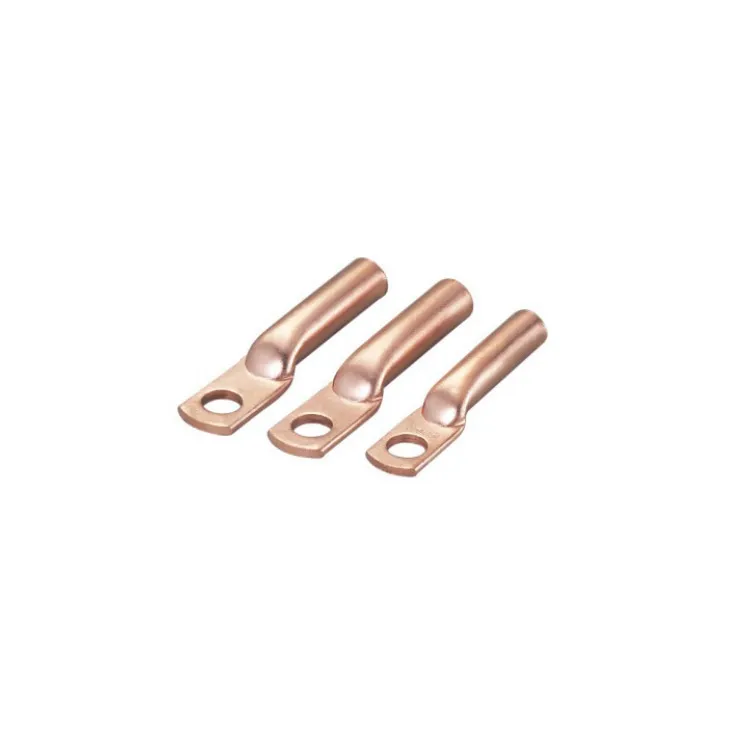

Copper Connectare compact in design and easy to install, suitable for the connection of various electrical wiring. It is made of high-quality copper for enhanced corrosion resistance and electrical conductivity. DT (G) terminal blocks are widely used in lighting, power, communication and other industries, and are important components for reliable circuit connection.

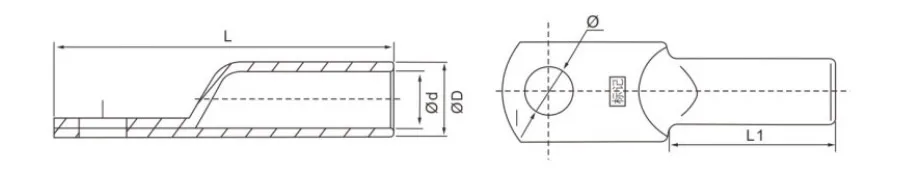

| Type | ∅ | D | d | L | L1 |
| DT(G)-10 | 6.5 | 8 | 5 | 51 | 28 |
| DT(G)-16 | 6.5 | 9 | 6 | 57 | 32 |
| DT(G)-25 | 8.5 | 10 | 7 | 61 | 32 |
| DT(G)-35 | 8.5 | 11 | 8.5 | 66 | 36 |
| DT(G)-50 | 8.5 | 13 | 10 | 72 | 38 |
| DT(G)-70 | 10.5 | 15 | 12 | 80 | 43 |
| DT(G)-95 | 10.5 | 18 | 14 | 85 | 44 |
| DT(G)-120 | 12.5 | 20 | 15 | 97 | 51 |
| DT(G)-150 | 12.5 | 22 | 17 | 102 | 53 |
| DT(G)-185 | 14.5 | 25 | 19 | 113 | 54 |
| DT(G)-240 | 16.5 | 27 | 21 | 118 | 56 |
| DT(G)-300 | 16.5 | 30 | 24 | 128 | 62 |
| DT(G)-400 | 21.0 | 34 | 26 | 150 | 65 |
| DT(G)-500 | 21.0 | 38 | 30 | 170 | 70 |
| DT(G)-630 | 21.0 | 45 | 35 | 200 | 80 |
