DT Aluminum Terminal Blocks

Brand:SMS

Name:DT Aluminum Terminal Blocks

FOB Port:Ningbo/Shanghai/Yiwu /Guangzhou/Shenzhen

Terms of Payment:T/T

Update:06/20/2024

Send a Quote

Description

DT aluminum terminal block, made of lightweight and high-strength aluminum alloy material, combined with advanced production technology, ensures the excellent performance and long-term stability of the product. Its good heat dissipation and corrosion resistance make it especially suitable for electrical connections in harsh environments such as humidity and high temperature.

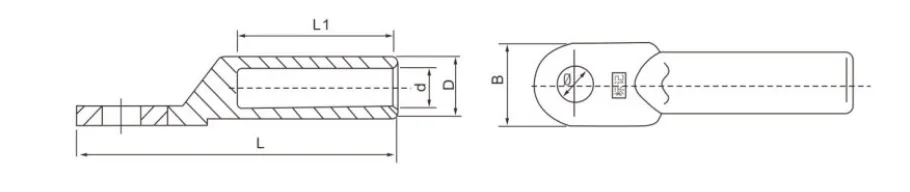

Parameters

Type	∅	D	d	L	L1	B
DT-10	8.5	9	5.8	67	34	16
DT-16	8.5	10	6	76	34	16
DT-25	8.5	11	7	70	34	18
DT-35	10.5	12	8.5	79	38	20
DT-50	10.5	14	9.8	87	43	23
DT-70	12.5	16	11.5	95	45	26
DT-95	12.5	18	13.5	105	50	28
DT-120	14.5	20	15	112	53	30
DT-150	14.5	22	16.5	118	56	34
DT-185	16.5	25	18.5	125	57	37
DT-240	16.5	27	21	136	61	40
DT-300	21	30	23	165	75	45
DT-400	21	34	26	165	77	50
DT-500	-	38	29	190	80	60
DT-630	-	45	34	220	90	80
DT-800	-	50	38	260	105	100
