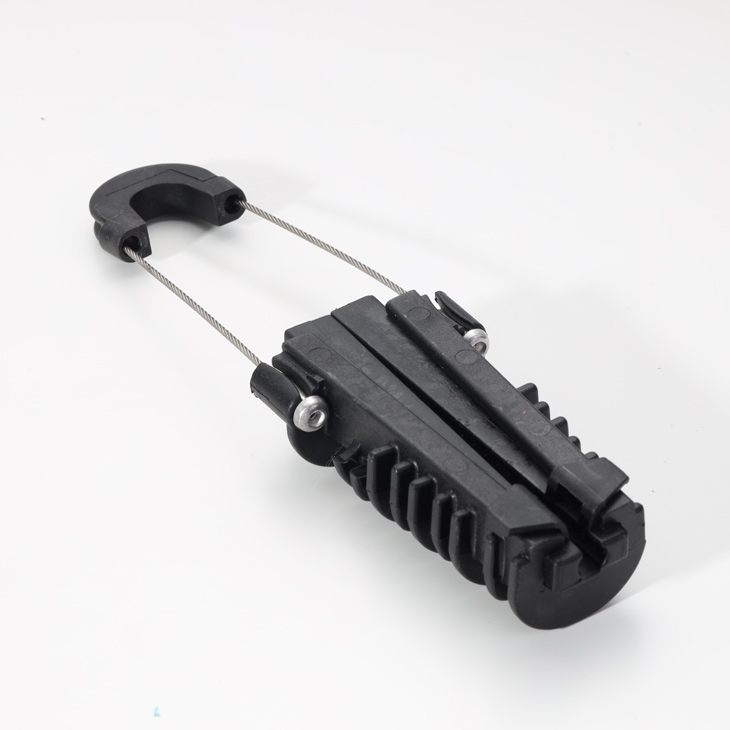

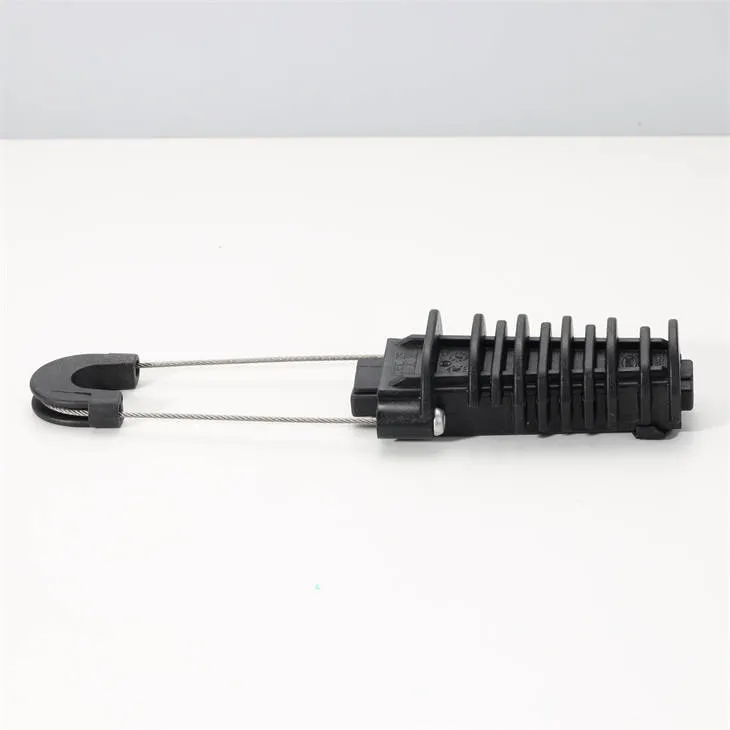

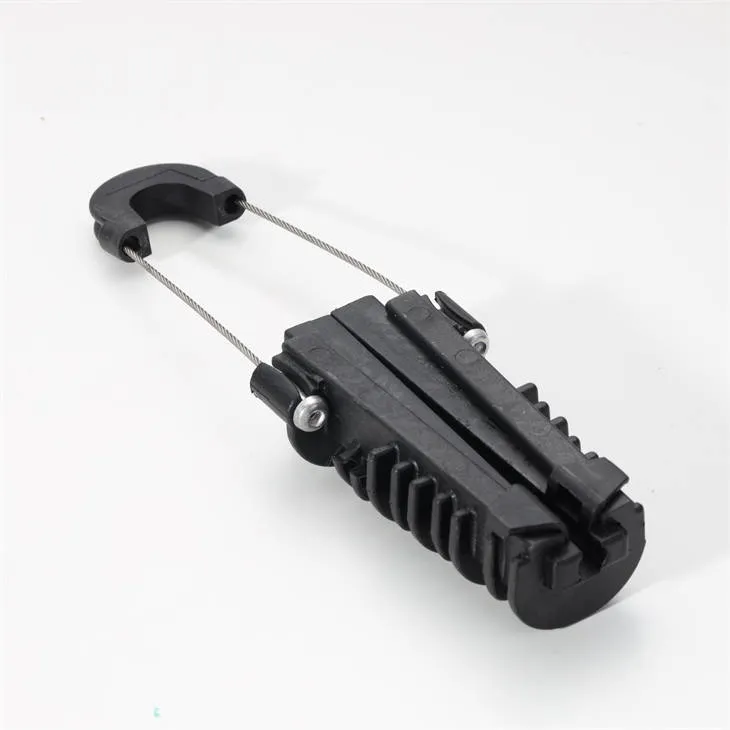

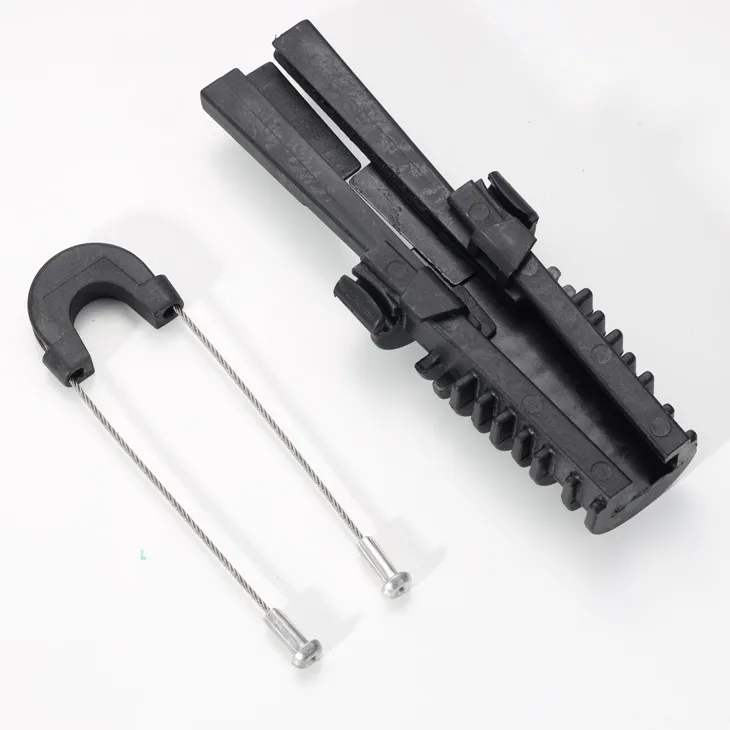

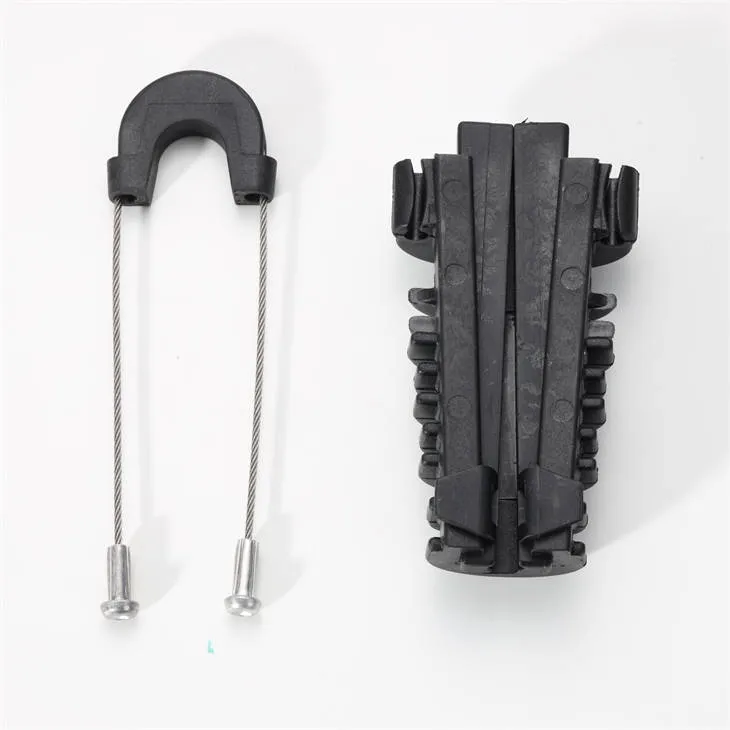

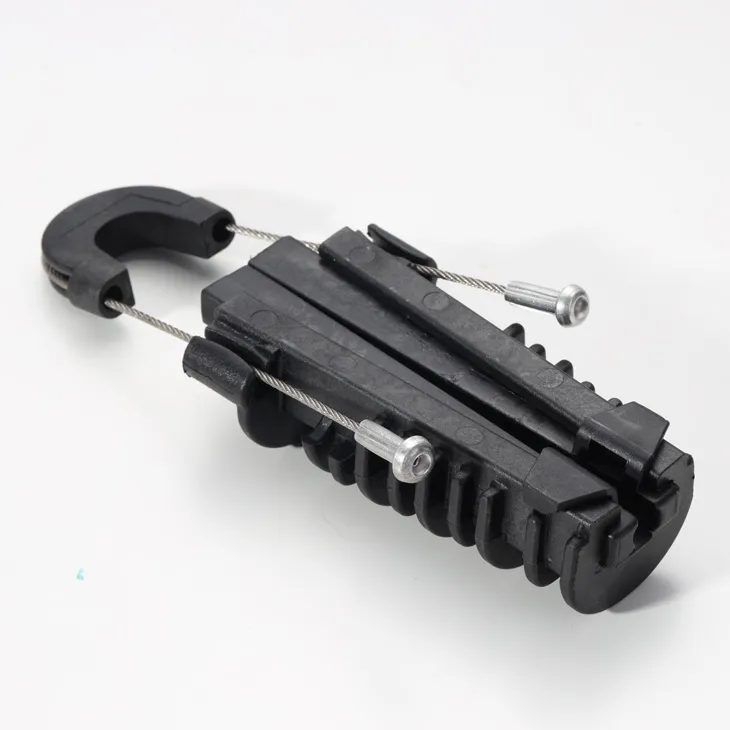

Tension Anchoring Clamp PA 500, PA 1500, PA 2000 /Anchoring dead-end clamp for insulated messenger
STANDARD: EN 50483, NFC 33-041
The Tension Anchor Clamp was designed to support ABC cables on wooden and concrete poles and on the facility walls.
It anchors the cables on overhead lines and can be combined with various types of brackets.
| No. | Item No. | Breaking Load(kN) | Conductor(mm2) | Messenger DIA.(mm) | Materials |
| 1 | PA 500 | 5.0 | 1×(16-25) | 3-9 | UV resistant plastic, stainless steel |
| 2 | PA 1000 | 10.0 | 1×(25-35) | 8-12 | |
| 3 | PA 2000 | 20.0 | 1x(50-95) | 11-15 |
