SPDB 3P-70/16 1/6 Terminal junction box is a precision-engineered electrical component designed to evenly distribute power across multiple circuits. The shunt's rugged construction and excellent insulation properties ensure safe and efficient power distribution.
| Maximum current | 175A | |||
| Dimensions | Technical data | |||
| Width/thickness/height NS 35:7.5/NS 35:15 | Length | Width | Height NS 35:7.5 | |
| 75.5 | 85 | 50 | ||
| Parameters according to standard IEC 60 947-7-1 | ||||
| Rated voltage | V | 690 | ||
| Rated current | A | 175 | ||
| Rated input/output cross section | (mm²) | 3×70/16 | ||
| Rated impulse voltage/pollution degree | 2.5kV/3 | |||
| Flammability grade according to standard UL94 | V-0 | |||
| More technical data | ||||
| Short-circuit current (peak value) | 51 | |||
| Short-circuit current>1S | 24.5 | |||
| Input | A | |||
| Number of input terminal connection points | 3×1 | |||
| "e" single-strand hard wire H07V-U | (mm²) | 16...70 | ||
| "m" multi-strand hard wire H07V-R | (mm²) | 16...70 | ||
| "f" soft wire H07V-K | (mm²) | 16...70 | ||
| "f" soft wire with pipe end in accordance with DIN46228-1 H07V-R | (mm²) | 16...70 | ||
| "f" soft wire with pipe end in accordance with DIN46228-1 plastic sleeve H07V-R |
16...70 | |||
| Diameter | mm | 12 | ||
| Tightening torque | (Nm) | 5 | ||
| Crimp screw specifications | M10 | |||
| Stripping length | (mm) | 15...16 | ||
| Screwdriver blade size | SK-S 5.0 | |||
| Output | A | |||
| Number of output terminal connection points | 3×6 | |||
| e Single-strand rigid wire H07V-U | (mm²) | 2.5...16 | ||
| m Multi-strand rigid wire H07V-R | (mm²) | 2.5...16 | ||
| f Flexible wire H07V-K | (mm²) | 2.5...16 | ||
| f Flexible wire with pipe end in accordance with DIN46228-1 H07V-R | (mm²) | 2.5...16 | ||
| f Flexible wire with pipe end in accordance with DIN46228-1 H07V-R | 2.5...16 | |||
| Diameter | mm | 6.1 | ||
| Tightening torque | (Nm) | 3 | ||
| Crimp screw specifications | M6 | |||
| Stripping length | (mm) | 10...12 | ||
| Screwdriver blade size/hexagonal wrench size | SK-S 3.0 | |||

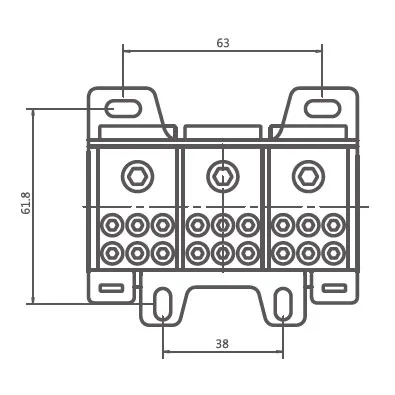

| Installation Dimensions |  |
|||
