SPDB 3P-35/16 1/6 Splitter is an essential component in a power distribution system. It provides a centralized connection point for multiple wires and cables, ensuring a neat and orderly routing arrangement. The junction box is made of durable materials that can withstand harsh environmental conditions. With its sturdy construction and simple installation process, it is ideal for professionals in the electrical industry.

Parameters

Maximum current		125A
Dimensions		Technical data
Width/thickness/height NS 35:7.5/NS 35:15		Length	Width	Height NS 35:7.5
		75.5	85	50
Parameters according to standard IEC 60 947-7-1
Rated voltage	V	690
Rated current	A	125
Rated input/output cross section	(mm²)	3×35/16
Rated impulse voltage/pollution degree		2.5kV/3
Flammability grade according to standard UL94		V-0
More technical data
Short-circuit current (peak value)		30
Short-circuit current>1S		11.8
Input		A
Number of input terminal connection points		3×1
"e" single-strand hard wire H07V-U	(mm²)	10...35
"m" multi-strand hard wire H07V-R	(mm²)	10...35
"f" soft wire H07V-K	(mm²)	10...35
"f" soft wire with pipe end in accordance with DIN46228-1 H07V-R	(mm²)	10...35
"f" soft wire with pipe end in accordance with DIN46228-1 plastic sleeve H07V-R		10...35
Diameter	mm	10
Tightening torque	(Nm)	1.5...5
Crimp screw specifications		M8
Stripping length	(mm)	14...15
Screwdriver blade size		SK-S 4.0
Output		A
Number of output terminal connection points		3×6
e Single-strand rigid wire H07V-U	(mm²)	2.5...16
m Multi-strand rigid wire H07V-R	(mm²)	2.5...16
f Flexible wire H07V-K	(mm²)	2.5...16
f Flexible wire with pipe end in accordance with DIN46228-1 H07V-R	(mm²)	2.5...16
f Flexible wire with pipe end in accordance with DIN46228-1 H07V-R		2.5...16
Diameter	mm	6.1
Tightening torque	(Nm)	3
Crimp screw specifications		M6
Stripping length	(mm)	10...12
Screwdriver blade size/hexagonal wrench size		SK-S 3.0

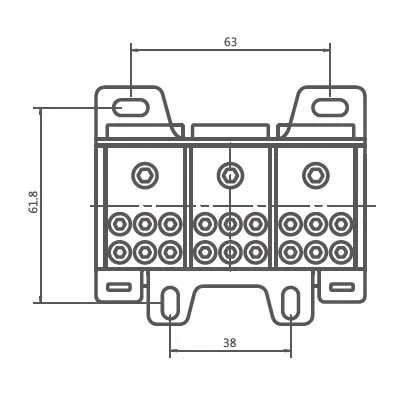

Installation Dimensions

SPDB Terminal installation Diagram
