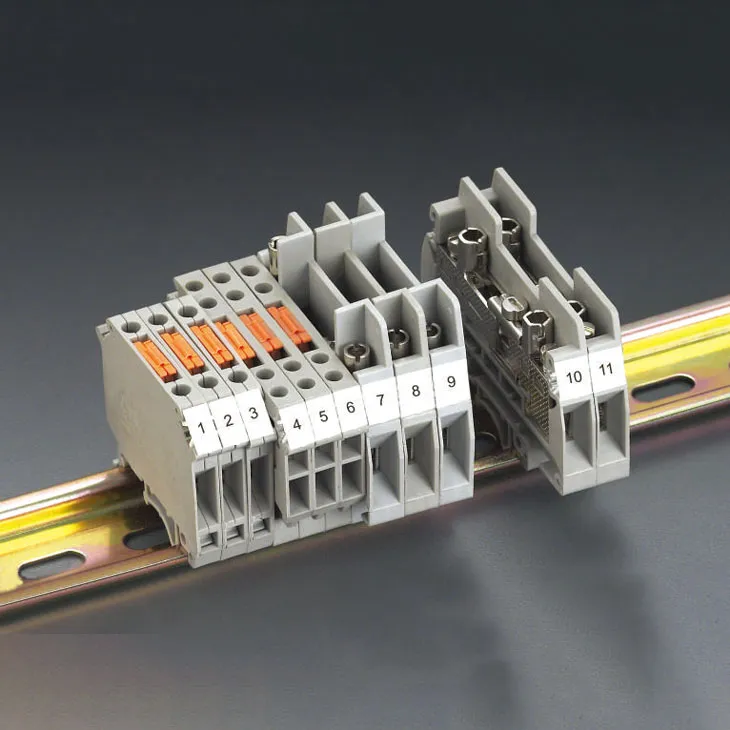

SKJ-4/2-2 Bolt Terminal Blocks adopts a double-row double-hole design, which is convenient for the access and fixation of multiple wires. Its solid bolt structure provides a strong clamping force to ensure the reliability and stability of the connection. It is widely used in power, electronics, automation equipment and other fields.

lntroduction

>>SKJ-4/2-2 terminal can save space, from side view this terminal half terminal thickness is staggered between upper and downside layers of wiring positions, this layout is very useful due upper and downside layer shall be connected with cable.

Parameters

Order No.			01026
Dimensions
Width x Length x Height		(mm)	64/6.2/61
Nominal screw diameter		(mm)	M3
Torque		(Nm)	0.5-0.7
Stripping Length		(mm)	8
Parameter
Voltage Rating		(V)	800
Current Rating		(A)	32
Wire section		(mm²)	4
Wire Range
Rigidity wire range		(mm²)	1.5-4
Soft wire range		(mm²)	1.5-4
DIN Rails			Type	Order No.
Mountable rail type			G32-15L G32-18/15	02006 02007
			TH35-7.5	02005
End clapboard
			SKJ-4/2-2G	01033
Clapboard
For electric separation of neighboring bridges, can be fitted later, no loss of pitch.			SKJ-4/2×2GP	01034
Compensation room clapboard
Laid out with common terminal, compen sating for the staggered space.			SKJ-4/2-2ZG SKJ-4/2-2DG	01035 01078
Internal Jupmer
Used for transversely bridge conn- ected in the center of terminal block, according to actual operation the voltage can be distributed.	10 pole		SFBI 10-6	01041
	3 pole
	2 pole
External Jumper
2 pole			SEB 2-6	01058
3 pole			SEB 3-6	01076
10 pole			SEB 10-6	01052
Mark Tag
Blank			SZB6-10	01065
10 no. Horz.			SZB6 (Horizontal)
10 no. Vert.			SZB6 (Vertical)
