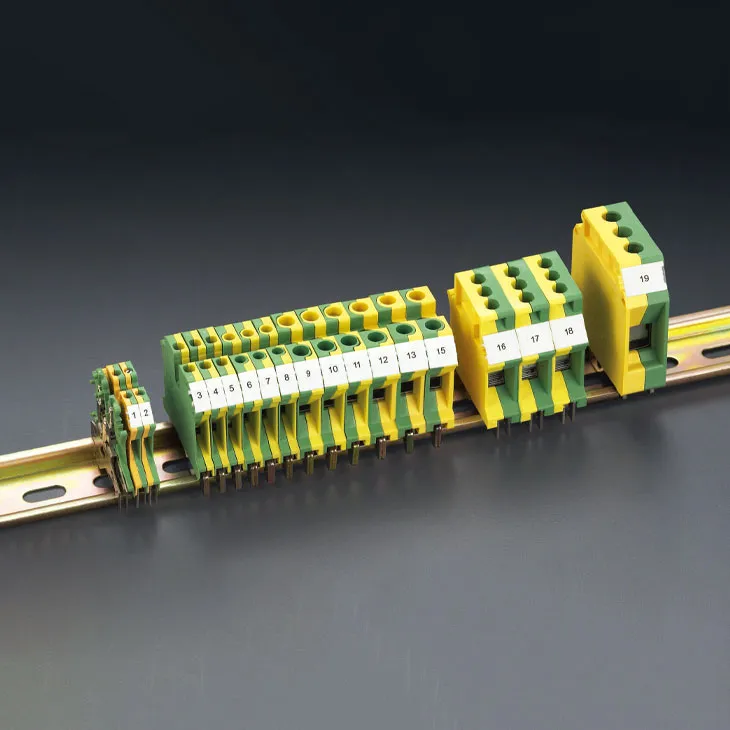

SKJ-2.5JD Ground Terminal Blocks are specially designed for grounding protection, providing a safe electrical grounding solution. With compact structure and easy installation, they are widely used in electrical grounding systems of electronic equipment, control systems and buildings.
lntroduction
>>Use ground blocks instead of grounding studs and wire lugs to terminate ground wires, saving installation and wiring time.
>>Ground blocks clamp mechanically onto the DIN Rail by tightening the center mounting screw, making a reliable electrical connection between the cage clamp terminals and the DlN Rail.
>>The rail serves as a busbar and automatically distributes ground potential to all other ground terminals on the same rail.
>>Ground blocks can also be used as end stops preventing other terminal blocks and components from moving laterally on the DlN Rail.
>>They are supplied with a standard green/yellow housing for easy identification and accept standard marking tags.
Order No. | 01012 | |||
Dimensions | ||||
Width x Length x Height | (mm) | 42.5/6.2/40.5 | ||
Nominal screw diameter | (mm) | M3 | ||
Torque | (Nm) | 0.5-0.7 | ||
Stripping Length | (mm) | 7 | ||
Parameter | ||||
Voltage Rating | (V) | |||
Current Rating | (A) | |||
Wire section | (mm²) | 2.5 | ||
Wire Range | ||||
Rigidity wire range | (mm²) | 0.2-6 | ||
Soft wire range | (mm²) | 0.2-4 | ||
DIN Rails | Type | Order No. | ||
Mountable rail type | G32-15L G32-18/15 |
02006 02007 |
||
TH35-7.5 | 02005 | |||
Mark Tag | ||||
Blank | SZB6 | 01064 | ||
10 no. Horz. | SZB6 (Horizontal) | |||
10 no. Vert. | SZB6 (Vertical) |
