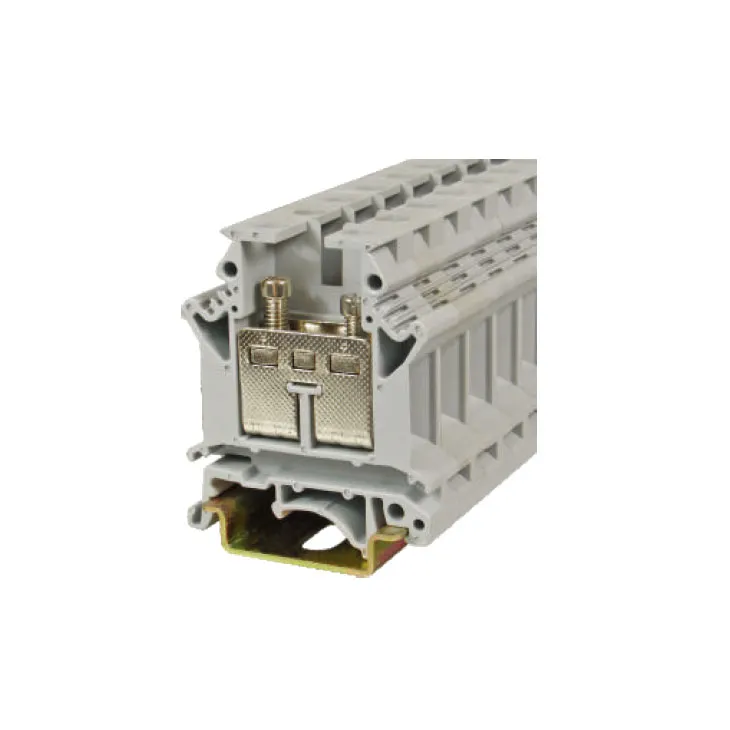

SKJ-16 electrical terminal block is suitable for a variety of electrical connection needs. Its 16-bit design provides more wiring points to meet the requirements of complex circuit layout. The terminal block surface is plated with an anti-corrosion layer to enhance corrosion resistance and ensure reliable operation in various environments. It is suitable for industrial, communication and automation control fields.
>> "SKJ" Series Universal Rail Mounting Standard Screw Clamp Feed through terminal blocks, have useful features as follows:
>> The terminal can be mounted on U type railway TH35-7.5 and G type railway G32-15L、G32-18. the closed screw guiding hole can make it easy operate screwdriver.
>>The universal accessories provided for terminals with several cross sectional area, e.g. clapboard, grouping plate, etc.
>>Potential distribution can be realized through connecting to fixed central jumper or inserting into side jumper.
>> Ground terminal and N line terminal with same figure of universal terminals, will be marked with SZB combined digital number for uniform identif-ication.
Order No. | 01007 | |||
Dimensions | ||||
Width x Length x Height | (mm) | 42.5/12.2/50.5 | ||
Nominal screw diameter | (mm) | M4 | ||
Torque | (Nm) | 1.5-1.8 | ||
Stripping Length | (mm) | 11 | ||
Parameter | ||||
Voltage Rating | (V) | 800 | ||
Current Rating | (A) | 101 | ||
Wire section | (mm²) | 16 | ||
Wire Range | ||||
Rigidity wire range | (mm²) | 2.5-25 | ||
Soft wire range | (mm²) | 4-16 | ||
DIN Rails | Type | Order No. | ||
Mountable rail type | G32-15L G32-18/15 |
02006 02007 |
||
TH35-7.5 | 02005 | |||
End clapboard | ||||
SKJ-16G | 01031 | |||
Clapboard | ||||
For electric separation of neighboring bridges, can be fitted later, no loss of pitch. |
SKJ-G(TS-K) | 01030 | ||
Compensation room clapboard | ||||
Laid out with common terminal, compen sating for the staggered space. |
SKJ-G(ATP-UK) | 01029 | ||
Internal Jupmer | ||||
Used for transversely bridge conn- ected in the center of terminal block, according to actual operation the voltage can be distributed. |
10 pole | SFBI 10-12 | 01044 | |
3 pole | SFBI 2-12 | 01047 | ||
2 pole | SFBI 3-12 | 01045 | ||
External Jumper | ||||
2 pole | ||||
3 pole | ||||
10 pole | ||||
Mark Tag | ||||
Blank | SZB10-10 | 01067 | ||
10 no. Horz. | SZB10 (Horizontal) | |||
10 no. Vert. | SZB10 (Vertical) |
