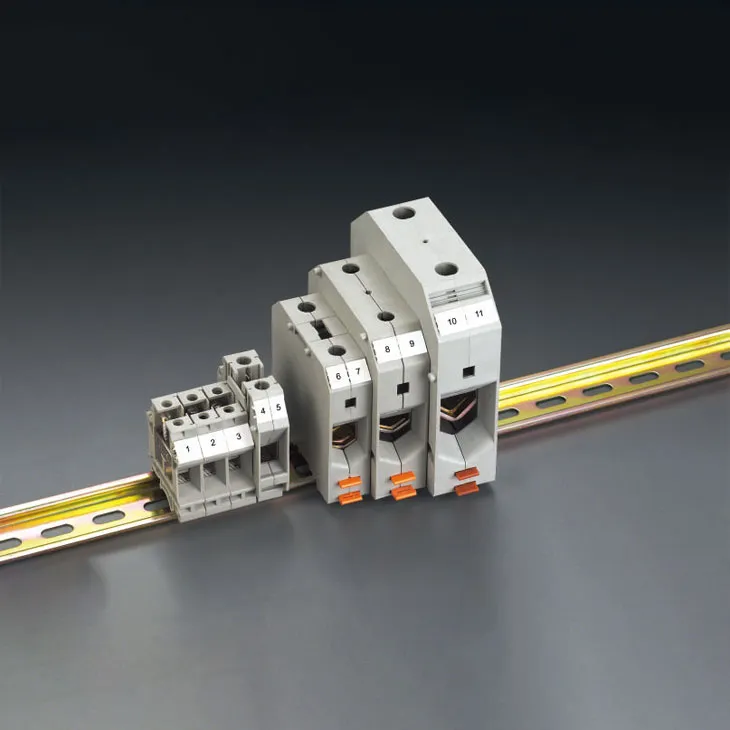

SKJ-150 high current terminal block is designed for high current load. Its strong current carrying capacity can meet the needs of high current connection in the industrial field. The terminal block is made of solid materials with good impact and vibration resistance to ensure reliability in high-intensity working environments.

lntroduction

>> The universal high current terminal blocks can hold the cable cross section range from 16 to 240mm'. The reliable cable connection is secured by means of appropriate constructiona measures.these measures including:

>> Wire clamp bottom of terminal is prism-shaped, to ensure three. point centering of the conductor in the prism-shaped sleeve base.

>> Fluted contact surface guaran-teeing low contact resistances.

>> Elastic element makes screws secured using spring-loaded elements.

>>The terminal blocks have two enclosed half shell housings made of PA6.6,The terminal can be mounted on the TH35-7.5 mounting rails, or mounting on DIN rails G32-18,G32-15L via lock spring.

Parameters

Order No.			01011
Dimensions
Width x Length x Height		(mm)	101.4/32/111
Nominal screw diameter		(mm)	M10 (screw)
Torque		(Nm)	25-30
Stripping Length		(mm)	40
Parameter
Voltage Rating		(V)	800
Current Rating		(A)	309
Wire section		(mm²)	150
Wire Range
Rigidity wire range		(mm²)	35-150
Soft wire range		(mm²)	50-150
DIN Rails			Type	Order No.
Mountable rail type			G32-15L G32-18/15	02006 02007
			TH35-7.5	02005
External Jumper
2 pole
3 pole
10 pole
Mark Tag
Blank			SZB10-10	01067
10 no. Horz.			SZB10 (Horizontal)
10 no. Vert.			SZB10 (Vertical)
