JY Type Connecting Tubes, with its exquisite craftsmanship and excellent performance, has become an ideal choice for connecting electrical components such as cables and wires. Its material is excellent, resistant to corrosion and wear, ensuring stability and reliability under long-term use. The connection method is simple and fast, effectively reducing the difficulty and cost of construction.
For connecting insulated aluminum cables in overhead power lines

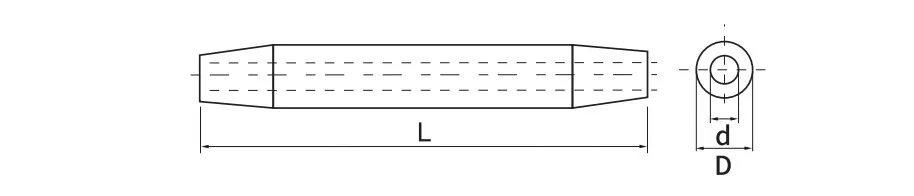

Item NO. | Cable (mm²) | Sizes (mm) | pull power (KN) | Insulated cover | ||
L | D | d | ||||
JY-25LY | JKLY-25 | 110 | 15 | 7 | 3.6 | JY-25LY |
JY-35LY | JKLY-35 | 120 | 16 | 8 | 4.9 | JY-35LY |
JY-50LY | JKLY-50 | 140 | 20 | 9 | 6.7 | JY-50LY |
JY-70LY | JKLY-70 | 170 | 22 | 11 | 9.8 | JY-70LY |
JY-95LY | JKLY-95 | 190 | 26 | 12.5 | 13 | JY-95LY |
JY-120LY | JKLY-120 | 210 | 26 | 14 | 16.5 | JY-120LY |
JY-150LY | JKLY_150 | 240 | 30 | 15.5 | 20 | JY-150LY |
JY-185LY | JKLY_185 | 260 | 32 | 17 | 25.4 | JY_185LY |
JY-240LY | JKLY-240 | 290 | 36 | 19.5 | 33 | JY-240LY |
JY-300LY | JKLY-300 | 350 | 36 | 21.5 | 38.7 | JY-300LY |
The insulated cover has two types, heat-shrinking tubes, and insulated tubes, it is need confirmed before ordering.
