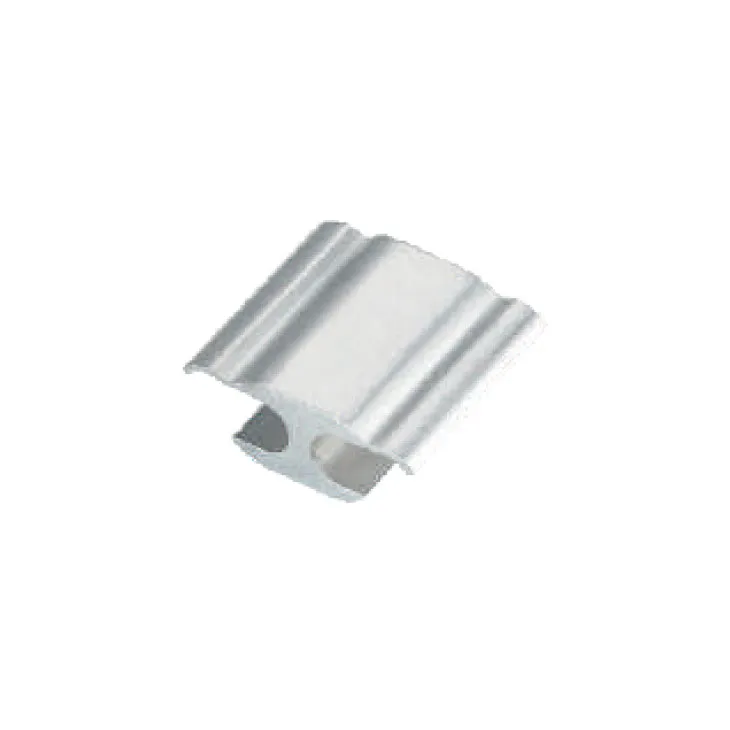

JH series H cable clamps are known for their strong clamping force and stable performance. Made of high-quality materials, they have excellent wear and corrosion resistance. The unique H-type design provides a larger clamping area, suitable for fixing large diameter cables or heavy cables.
H cable clamps are a non-bearing type clip for middle and low voltage.
| Item No. | Main (mm²) | Tap (mm²) | Size (mm) | Insulated cover | |||
| L | R1 | R2 | W | ||||
| JH-1(35-35) | 16-35 | 16-35 | 38 | 4.5 | 4.5 | 46 | JJH-1(35~35) |
| JH-2(50-95) | 50-95 | 16-50 | 48 | 7.5 | 5.8 | 64 | JJH-2(50~95) |
| JH-3(95-95) | 50-95 | 50-95 | 60 | 7.5 | 7.5 | 68 | JJH-3(95~95) |
| JH-4(70-240) | 95-240 | 16-70 | 51 | 11.75 | 6.5 | 89 | JJH-4(70~240) |
| JH-5(150-240) | 95-240 | 70-150 | 51 | 11.75 | 8.5 | 94 | JJH-5(50~240) |
| JH-6(240-240) | 150-240 | 150-240 | 89 | 11.75 | 11.75 | 97 | JJH-6(240~240) |

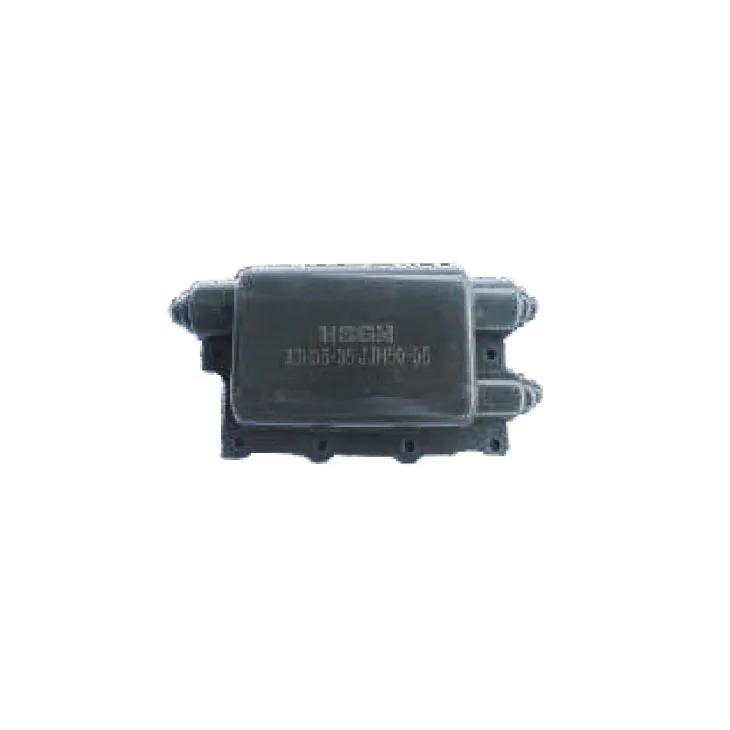

Insulated cables need striping out before use, then with an insulated cover.
