JBLY flat cable clamps are designed for flat cables, providing a convenient fixation and organization solution. Its lightweight construction and compact design make installation and removal simple and quick. Through uniform clamping force, it ensures that the flat cable will not be squeezed or damaged.
lt will be an insulation aluminum cable clamp byadding an insulated shell, which is up to the buyer's requirements.

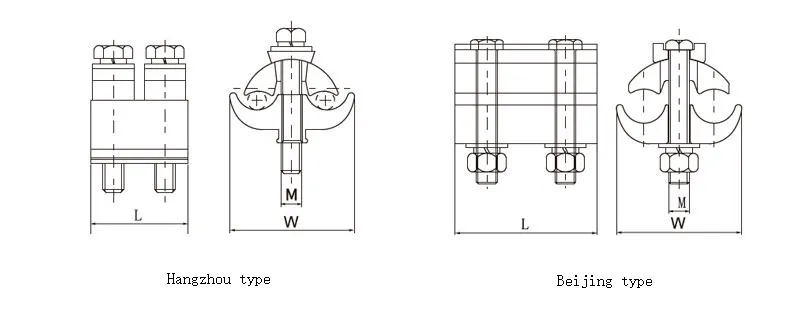

| Drawing Number | Item No. | Cable range (mm²) | Size | ||
| L | W | M | |||
| Hangzhou type | JBLY-6~16 | 16-16 | 40 | 29 | M8 (2 pieces) |
| JBLY-10~70 | 10-70 | 40.5 | 41.5 | M8 (2 pieces) | |
| JBLY-16~50 | 16-50 | 35 | 41 | M10 | |
| JBLY-16~120(A) | 16-120 | 47 | 47 | M10 (2 pieces) | |
| JBLY-16~120(B) | 16-120 | 70 | 47 | M10 (3 pieces) | |
| JBLY-50~240(A) | 50-240 | 64 | 62 | M10 (2 pieces) | |
| JBLY-50~240(B) | 50-240 | 70 | 62 | M10 (3 pieces) | |
| JBLY-120~400(A) | 120-400 | 70 | 78 | M12 (2 pieces) | |
| JBLY-120~400(B) | 120-400 | 90 | 78 | M12 (3 pieces) | |
| Beijing type | JBLY-6~16 | 45093 | 40 | 78 | M8 (2 pieces) |
| JBLY-10~70 | 10-70 | 42 | 30 | M8 (2 pieces) | |
| JBLY-10~95(A) | 10-95 | 40 | 36 | M8 (2 pieces) | |
| JBLY-10~95(B) | 10-95 | 60 | 41.5 | M8 (3 pieces) | |
| JBLY-10~150 | 10-150 | 52 | 41.5 | M10 (2 pieces) | |
| JBLY-16~120 | 16-120 | 46 | 57 | M10 (2 pieces) | |
| AJBLY-16~120(B) | 16-120 | 69 | 47 | M10 (3 pieces) | |
| JBLY-50~240A(BO) | 50-240 | 47 | 47 | M10 (2 pieces) | |
| JBLY-50~240A(BO) two sections long |
16-16 | 64 | 59.8 | M10 (2 pieces) | |
| JBLY-50~240(B) | 50-240 | 69 | 59.8 | M10 (3 pieces) | |
| JBLY-70~300(A) | 70-300 | 70 | 65 | M10 (2 pieces) | |
| JBLY-70~300(B) | 70-300 | 90 | 65 | M10 (3 pieces) | |
| JBLY-16-120A(BO) | 16-120 | 46 | 44.5 | M8 (2 pieces) | |
