The JB Type Parallel Clampsis specially designed for cable fixing and is made of high-strength materials to ensure that the cables are neatly arranged and stable. Its unique parallel design can effectively disperse the weight of the cable and reduce stress concentration. It is suitable for various industrial and power installation environments to ensure the safety and stability of the cable system.

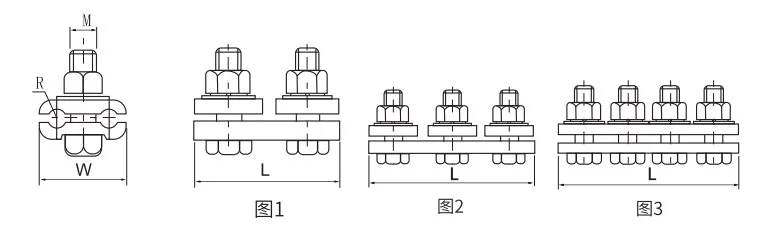

| Item NO. | Cable cross section (mm²) | Diagram | Sizes (mm) | |||
| L | W | R | M | |||
| JB-0 | 16~25 | 1 | 70 | 36 | 3.5 | 10 |
| JB-1 | 35~50 | 1 | 80 | 43 | 5 | 12 |
| JB-2 | 70~95 | 2 | 114 | 50 | 7 | 12 |
| JB-3 | 120~150 | 2 | 140 | 62 | 8.5 | 16 |
| JB-4 | 185~240 | 2 | 144 | 71 | 11 | 16 |
| JB-5 | 300~400 | 3 | 200 | 90 | 14 | 16 |
| JB-6 | 500~630 | 3 | 230 | 106 | 17.5 | 20 |
The clamp body and cover are made of aluminum alloy other parts are made of hot-dip steel.
