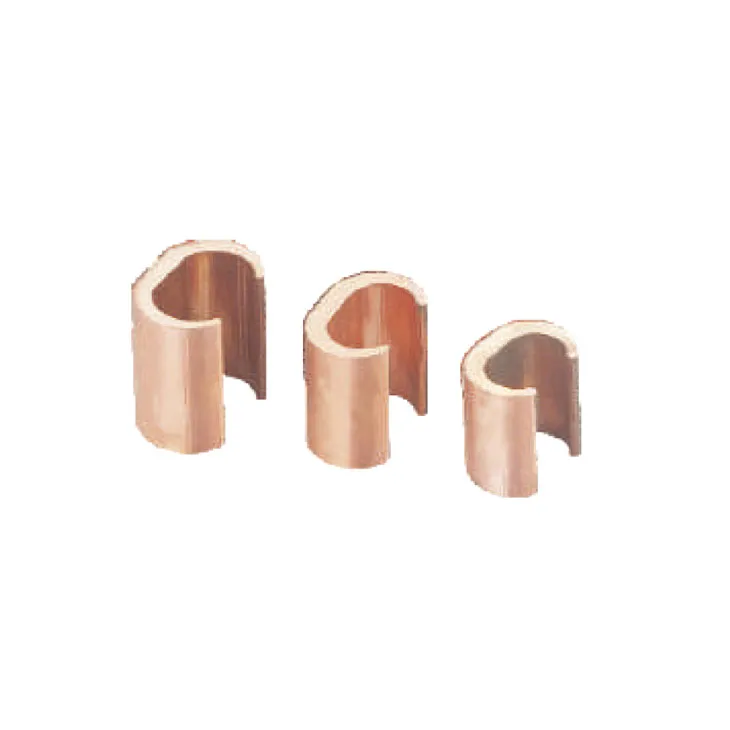

CCT C-type copper cable clamp is an ideal choice for cable connection. Its C-type structure makes cable installation more convenient. Just put the cable in the C-type clamp and tighten the screws to fix it. It is made of high-purity copper material with excellent conductivity and good corrosion resistance. It is widely used in cable connection and fixation in the power, communication and construction industries.

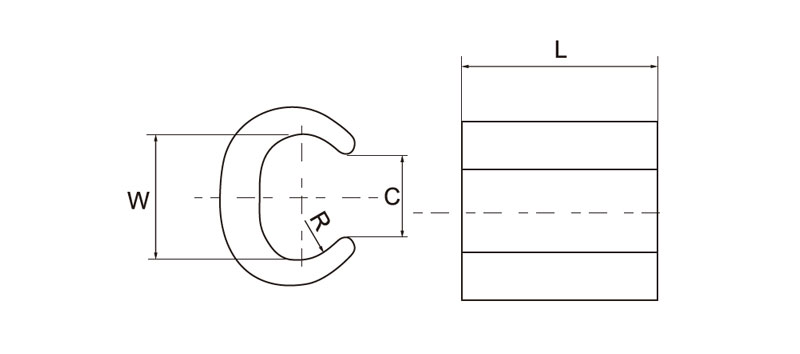

| Item No. | Size (mm) | |||
| L | W | C | R | |
| CCT-10 | 12 | 7 | 4 | 1.9 |
| CCT-16 | 13 | 7.8 | 5 | 2.3 |
| CCT-20 | 13 | 8.5 | 5.5 | 2.6 |
| CCT-26 | 16 | 10 | 6.5 | 2.6 |
| CCT-44 | 20 | 13.5 | 8.5 | 4.1 |
| CCT-60 | 22 | 15.5 | 10 | 4.7 |
| CCT-76 | 22 | 17.2 | 12 | 6.1 |
| CCT-98 | 25 | 21 | 13 | 6.2 |
| CCT-122 | 26 | 22.5 | 14 | 7.0 |
| CCT-154 | 28 | 25.7 | 17 | 8.7 |
| CCT-190 | 35 | 28.5 | 17.5 | 8.9 |
| CCT-240 | 40 | 30 | 19 | 9.9 |
| CCT-288 | 45 | 34.5 | 22.5 | 11.3 |
| CCT-365 | 50 | 37.5 | 25 | 13.1 |
| CCT-450 | 60 | 42.5 | 28 | 14.3 |
| CCT-560 | 65 | 46 | 31 | 16 |
| CCT-700 | 70 | 51.5 | 34 | 18 |
