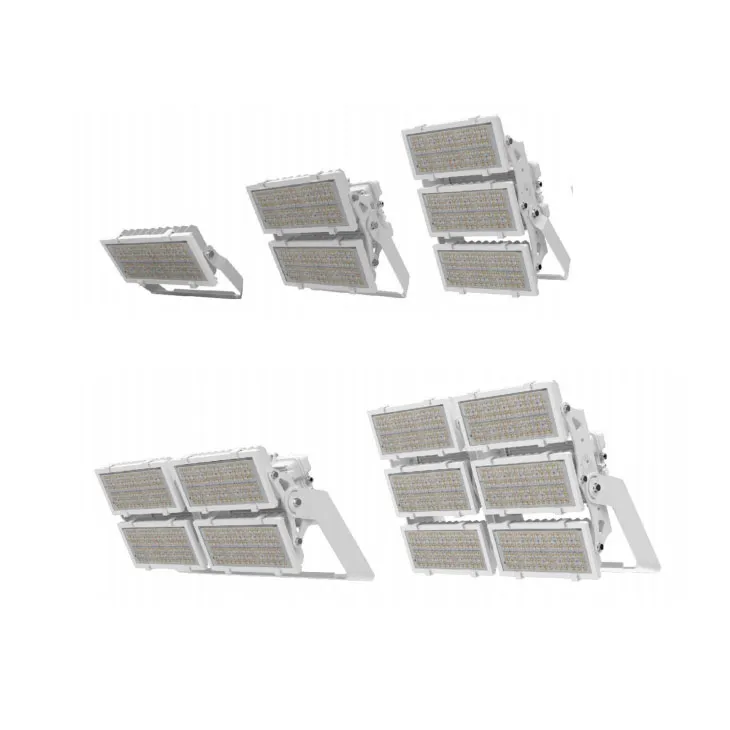

EKOLF-001 LED floodlight adopts high-brightness LED light source, which has the characteristics of uniform light and wide lighting range. The floodlight is easy to install and is suitable for outdoor advertising, stadiums, industrial and mining enterprises and other places that require large-area lighting.
| Model No | EKOLF-001-1M | EKOLF-001-2M | EKOLF-001-3M | EKOLF-001-4M | EKOLF-001-6M |
| Power | 100-200W | 300-400W | 500-600W | 700-800W | 900-1200W |
| LED 5050 Qty (PCS) | 80PCS | 160PCS | 240PCS | 320PCS | 480PCS |
| Luminaire Flux (LM) | 14000LM-28000LM | 42000LM-56000LM | 70000LM-84000LM | 98000LM-112000LM | 126000LM-168000LM |

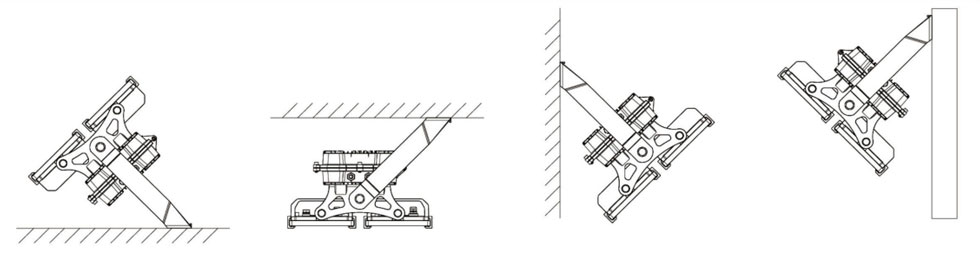

| Materials | Whole heawy lP66 aluminum fixture and the aluminum driver box desian, with super white tempered alass; Desioned from 1module to 6modules, to be 200~1500W, More than twenty kinds lens and super white tempered glass to meet different type and beam angle requirement; Special designed bracket to meet different mount ways requirement; |
||||
| LED Chips | Philips Led 5050 (other brand of led upon request), 140-180LM/W, CCT: 2700K-6500K. CRl:70 (80 upon request) |
||||
| Driver | PHILIPS/ SOSEN/ Meanwell/ inventronics/ MOSO (other brand of driver upon request) Input voltage: 100-277VAC/ 50-60HZ; 108-305VAC/ 50-60HZ 10KV/ 20KV SPD |
||||
| Beam angle | 10°/ 15°/ 20°/ 30°/ 40°/ 50°/ 60°/ 90°/ 97X47°/ 30X70° | ||||
| Dimming | DALI/1-10V/PWM/FIVE LEVELS DIM MING/ | ||||
| Options | Surge protection device / External cable (different length upon request) | ||||
| Color | Grey/Black/White (other color upon request) | ||||
| Standards & Certification | IP66,IK08.ISO 9001:2015 /CE/ ROHS | ||||
