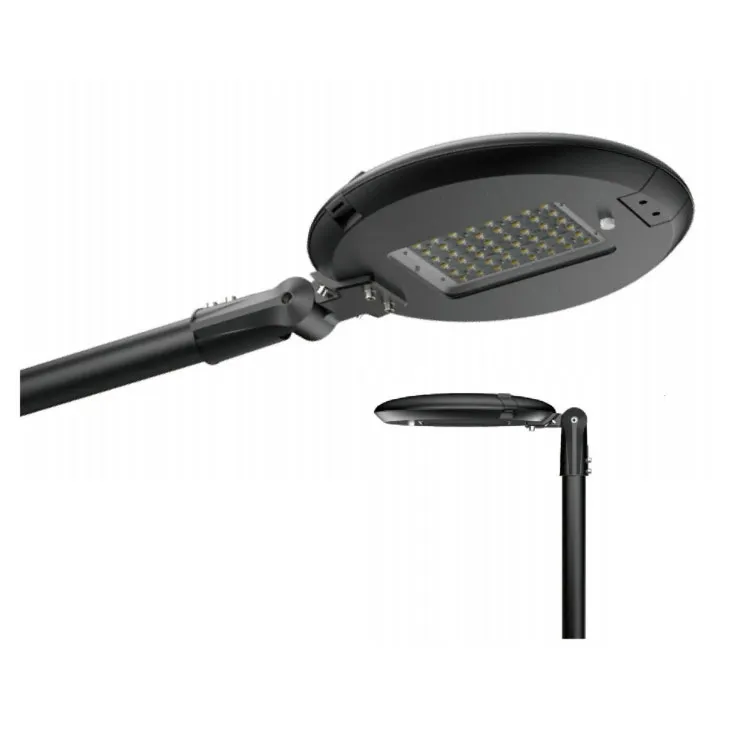

EKO-STAR-A 30-150W Street Light is an energy-efficient outdoor lighting product. It uses advanced LED light source technology and has the characteristics of high light efficiency, long life, energy saving and environmental protection. The street light is well designed and beautiful in appearance, suitable for lighting needs of urban roads, squares, parks and other places.
| Housing and finish | |
| Housing | High pressure die-casting aluminum |
| Optic | PMMA/PC |

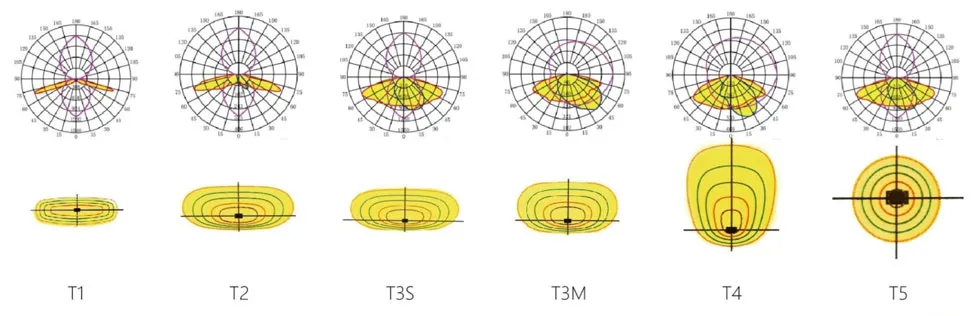

| Lens | Type l/Type ll /Type lll /Type IV/Type V |
| Protector | Super white tempered glass |
| Housing Color | Grey / black (Default), other color (available on request) |
| Protection Level | IP66 |
| Impact Resistance | IK08 |
| Warranty Time | 5 years |
| Operating conditions | |
| Operating Temperature (Ta) | -40℃ up to +55℃ |
| General information | |
| Recommended Installation Height (m) | 3~15 |
| Compliance | CE/CB/ROHS /IP66 /IK08 |

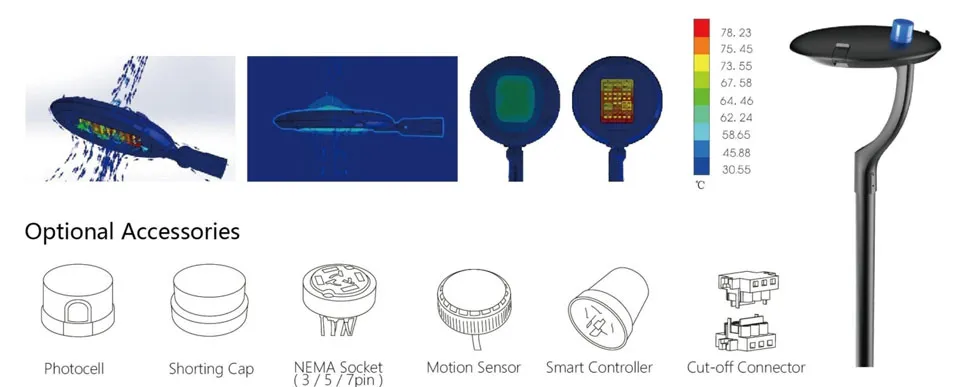

Structure is optimized by advanced FEA technology Well managed temperature rise between internaland external parts . Even thermal distributions . Higher lumen maintenance rate
| Electrical class | Classl EU ( Default), Class ll EU |
| Driver | Inventronics 1 Philips / MeanWell / MOSO / other brands one request |
| Nominal voltage | 120-277V-50-60Hz 220-240V-50-60Hz |
| Power factor (at full load) | >0.95 |
| Surge protection (kV) | 10KV( Default)/ 20KV (avalable on request) |
| Control protocol(s) | 1-10V dimming (Default) 1 Time control/ DALl |
| Control option(s) | Photocell Remote management |
| Available on request | NEMA socket(3/5/7 pins), Photocell, ZHAGA socket, Short cap, 1-10V dimming, DALl Dimming, PIR |
