AC Fan SF-250FZY, 300FZY Series

Brand:

Name:AC Fan SF-250FZY, 300FZY Series

FOB Port:Ningbo/Shanghai/Yiwu /Guangzhou/Shenzhen
Terms of Payment:T/T
Update:07/08/2024
Description
Specification



• Motor structure: The motor capacitor drive outer rotor.

• Outer enclosure: high qualityAl alloy, anti-corrosive and anti damping structure.

• Fan blade: steel sheet formed through punching and pressing, blade welded directly on rotor of the motor, its surface treat with anti-corrosive coating by use of Cathodic electrodeposition.

• Insulation resistance: more than 100MΩ between outer enclosure and windings applied with 500VDC.

• Dielectric strength: 0.5mA 1500V/AC min.

• Bearing structure: ball bearing.

• Insulation level: B, F class.

• Protection grade: lP 55.

• Safe protection: Resistance protection.

• Workingtemperature: -25℃~+85℃

• Storage temperature: -30℃~+90℃

• Service life: 50000h.

• Use: used in equipment of ventilation and heat dispersion Places, such as electrical control cabinet, machine tool, EPS, UPS, Medical equipment needs ventilation cooling.

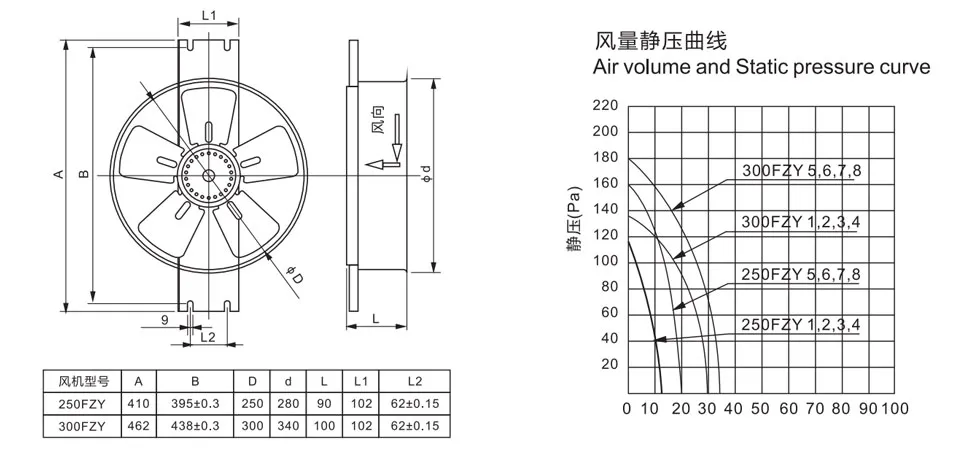

Model Meanings





Model Bearing Rated Voltage (V) Freg (Hz) Phase (A) Rated Current (A) Input Power (W) Speed (Rpm) Air Flow (CMM) Air Flow (CFM) Static Pressure (mmH₂O) Noise Level (dB-A) Capacity (uFN) Weight (kg) Quantity (PCS)
SF-250FZY1-D Ball 110 50/60 1 0.40 40 1350 12.5 120 442.5 58 4.0uF/250 2.9 5
SF-250FZY2-D Ball 220 50/60 1 0.20 40 1350 12.5 120 442.5 58 1uF/500 2.9 5
SF-250FZY3-D Ball 380 50/60 3 0.10 40 1350 12.5 120 442.5 58 2.9 5
SF-250FZY4-D Ball 380 50/60 1 0.12 40 1350 12.5 120 442.5 58 0.8uF/630 2.9 5
SF-250FZY5-D Ball 110 50/60 1 1.00 100 2600 21 160 743.5 68 12uF/250 2.9 5
SF-250FZY6-D Ball 220 50/60 1 0.50 100 2600 21 160 743.5 68 2.4uF/500 2.9 5
SF-250FZY7-D Ball 380 50/60 3 0.20 100 2600 21 160 743.5 68 2.9 5
SF-250FZY8-D Ball 380 50/60 1 0.35 100 2600 21 160 743.5 68 2uF/630 2.9 5
SF-300FZY1-D Ball 110 50/60 1 0.80 80 1350 32 140 1132.5 62 12uF/250 3.5 5
SF-300FZY2-D Ball 220 50/60 1 0.40 80 1350 32 140 1132.5 62 2.4uF/500 3.5 5
SF-300FZY3-D Ball 380 50/60 3 0.20 80 1350 32 140 1132.5 62 3.5 5
SF-300FZY4-D Ball 380 50/60 1 0.22 80 1350 32 140 1274.5 62 1uF/630 3.5 5
SF-300FZY5-D Ball 110 50/60 1 1.90 200 2500 36 180 1274.5 72 12uF/250 3.5 5
SF-300FZY6-D Ball 220 50/60 1 0.95 200 2500 36 180 1274.5 72 4uF/500 3.5 5
SF-300FZY7-D Ball 380 50/60 3 0.35 200 2500 36 180 1274.5 72 3.5 5
SF-300FZY8-D Ball 380 50/60 1 0.55 200 2500 36 180 1274.5 72 2.7uF/630 3.5 5
