Ventilating Filtration Screen Assembly SF-8808A&C

Brand:

Name:Ventilating Filtration Screen Assembly SF-8808A&C

FOB Port:Ningbo/Shanghai/Yiwu /Guangzhou/Shenzhen
Terms of Payment:T/T
Update:07/05/2024
Description
Features of SF88 series filtration screen



Material: filter body made of flame retardant ABS resin, net made of foreign nylon fiber synthetic resin, with the anti-ultraviolet and static resistant performance, dust cleaning rate up to 86%, effectively prevent dust from access into electric cabinet.

Features:filter edge added with super sealing tape, to prevent rain and water penetrating into cabinet, also provide good radiating heat produced by controller and electronic components, extending servicing life, reduce fault rate. The filter shall be cleaned in period, to keep good filtration function.

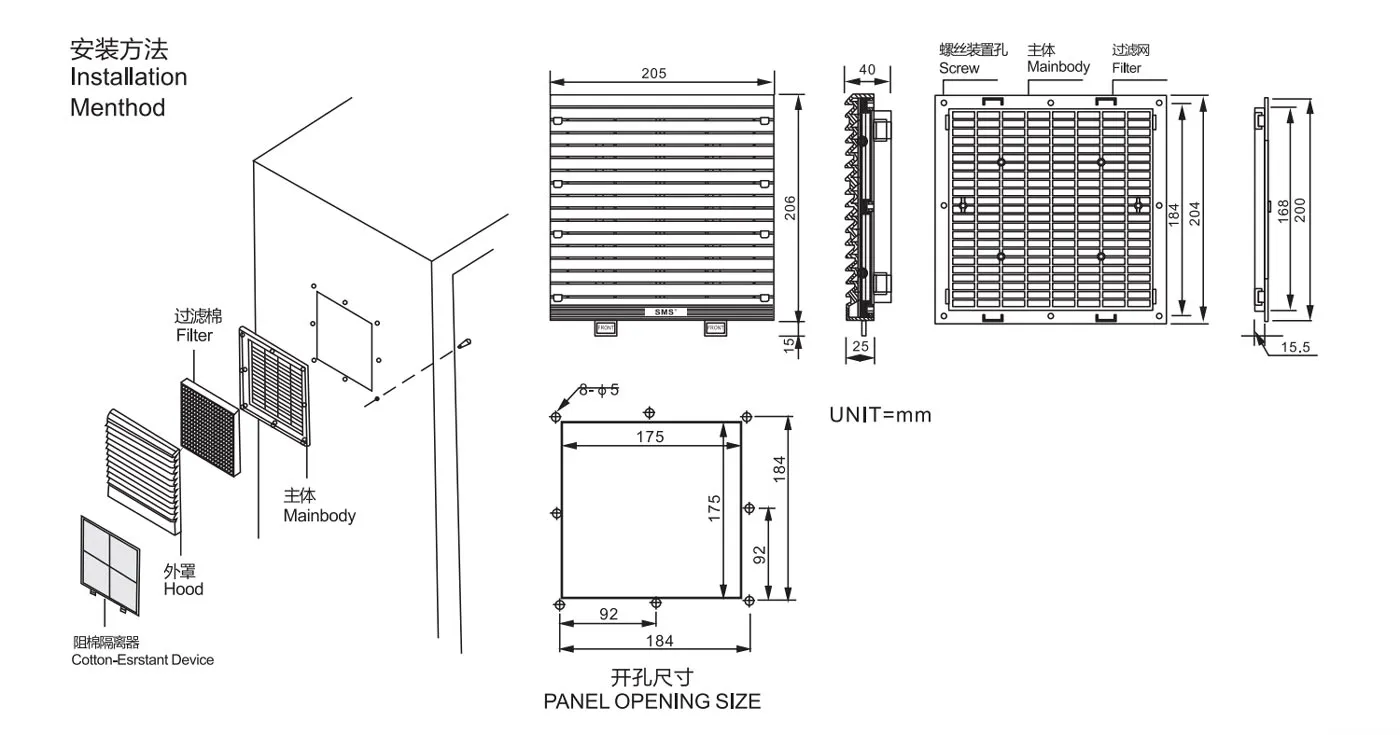

Appearance: outer frame is thin, ventilation hole sloped in angle of 45 degree, new style, good looking, with waterproof and dustproof function.

Application: it suits for working in restaurant, factory, house, and where it need to clean dust in air.





NAME Model Outline size
(Exposed part)
(mm)
Effective wind volume
(m³/min)
Maxi wind speed
(m/s)
Dust cleaning rate
(%)
(INCH-H₂O)
Pressureoss scope
Application
(Indoor)
Material Protection grade Weight  (G) Applicable Fan
Ventilation filter set SF-8808 205×221×25 - - 86 6.7-40 -10-50℃ ABS fire grade IP54 418 150/1725 Type
Ventilation filter fan set SF-8808C 205×221×25 40.0 2.0 86 6.7-40 -10-50℃ ABS fire grade IP54 418 150/1725 Type
