• Material: filter body made of flame retardant ABS resin, net made of foreign nylon fiber synthetic resin, with the anti-ultraviolet and static resistant performance, dust cleaning rate up to 86%, effectively prevent dust from access into electric cabinet.
• Features: filter edge added with super sealing tape, to prevent rain and water penetrating into cabinet, also provide good radiating heat produced by controller and electronic components, extending servicing life, reduce fault rate. The filter shall be cleaned in period, to keep good filtration function.
• Appearance: outer frame is thin, ventilation hole sloped in angle of 45 degree, new style, good looking, with waterproof and dustprooffunction.
• Application:Applicable to automation equipment,factory, house, and where it need to clean dust in air.

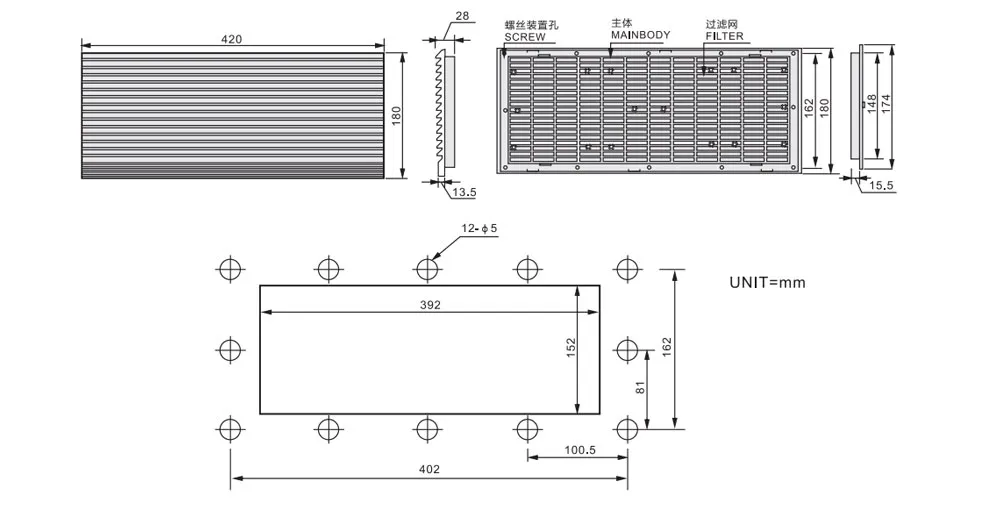

NAME | Model | Outline size (Exposed part) (mm) |
Effective wind volume (m³/min) |
Maxi wind speed (m/s) |
Dust cleaning rate (%) |
(INCH-H₂O) Pressureoss scope |
Application (Indoor) |
Material | Protection grade | Weight (G) | Applicable Fan |
Ventilation filter set | SF-8807X | 420×180×13.5 | - | - | 86 | 6.7-40 | -10-50℃ | ABS fire grade | IP54 | 518 | 120/1725 Type |
Ventilation filter fan set | SF-8807XC | 420×180×13.5 | 100.0 | 2.0 | 86 | 6.7-40 | -10-50℃ | ABS fire grade | IP54 | 518 | 120/1725 Type |
