Ventilating Filtration Screen Assembly SF-6623

Brand:

Name:Ventilating Filtration Screen Assembly SF-6623

FOB Port:Ningbo/Shanghai/Yiwu /Guangzhou/Shenzhen
Terms of Payment:T/T
Update:07/08/2024
Description
Model meanings

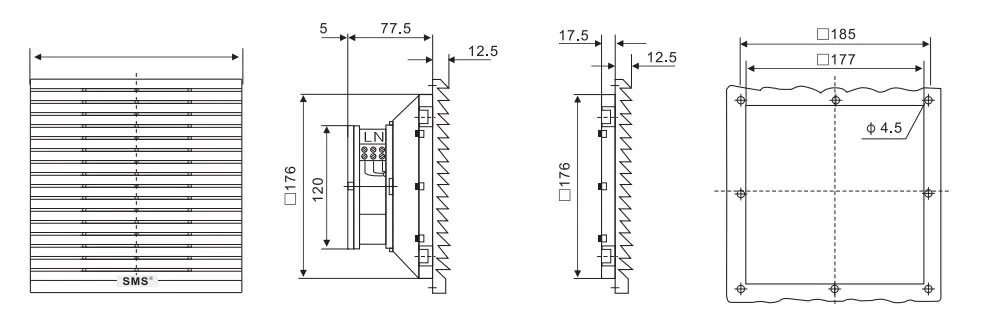

SF66 Specification



• Function: it is cooperated with axial fan,industrial fan ,radiating fan.

• Material: ventilation net made of fire retardantABS resin, filtration screen made of foreign nylon fiber synthetic resin.

• Protection grade: lP44;

• Characteristics: Anti-ultraviolet and static electric resistant, dust cleaning rate reach up to 86%, effectively prevent dust access into electric cabinet, vent constructed in 45 sloping angle, with merits of new style and good appearance, waterproof and dustproof and etc., this is to ensure controller and precise electronic elements radiating effectively, extend the working life, lessen fault rate. Filtration screen need to be cleaned in period, to keep ventilation filtration result.

• Used to filter dust and impurities in the air for restaurant, factory, living building, and etc.







NAME Model Specification Air flow (Random/Coordinated) Protection grade Applicable conditions Applicable fans
SF66 series ventilation filter group SF-6623.230 Into the wind - IP44 -10℃-50℃ 120#
SF66 series ventilation filter group SF-6623.300 Out of the wind, - IP44 -10℃-50℃ 120#
SF66 series ventilation filter fan group SF-6623.230C Into the wind 105/71 m³/min IP44 -10℃-50℃ 120#
