JDG Earthing Terminals for Steel Twisted Wires are specially designed for steel twisted wire grounding, with excellent conductivity and corrosion resistance. This product is widely used in power transmission and distribution systems, communication base stations, building lightning protection and other fields, and is an important component to ensure electrical safety.
Parameters

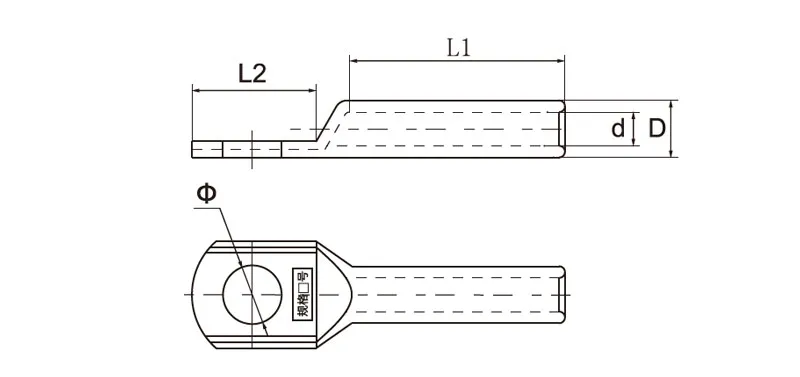

| Item No. | Wires | Sizes (mm) | ||||
| L1 | L2 | D | d | Φ | ||
| JDG-35 | GJ-35 | 60 | 35 | 16 | 9.5 | 16.5 |
| JDG-50 | GJ-50 | 60 | 35 | 18 | 11 | 16.5 |
| JDG-70 | GJ-70 | 70 | 40 | 20 | 12 | 16.5 |
| JDG-80 | GJ-80 | 70 | 40 | 22 | 13 | 16.5 |
| JDG-100 | GJ-100 | 80 | 45 | 26 | 15 | 18 |
| JDG-120 | GJ-120 | 80 | 45 | 26 | 16 | 18 |
Note: Steel parts are hot-dip galvanized.
