JDBG earthing terminals for twisted wires

Brand:SMS

Name:JDBG earthing terminals for twisted wires

FOB Port:Ningbo/Shanghai/Yiwu /Guangzhou/Shenzhen
Terms of Payment:T/T
Update:10/18/2023
Description

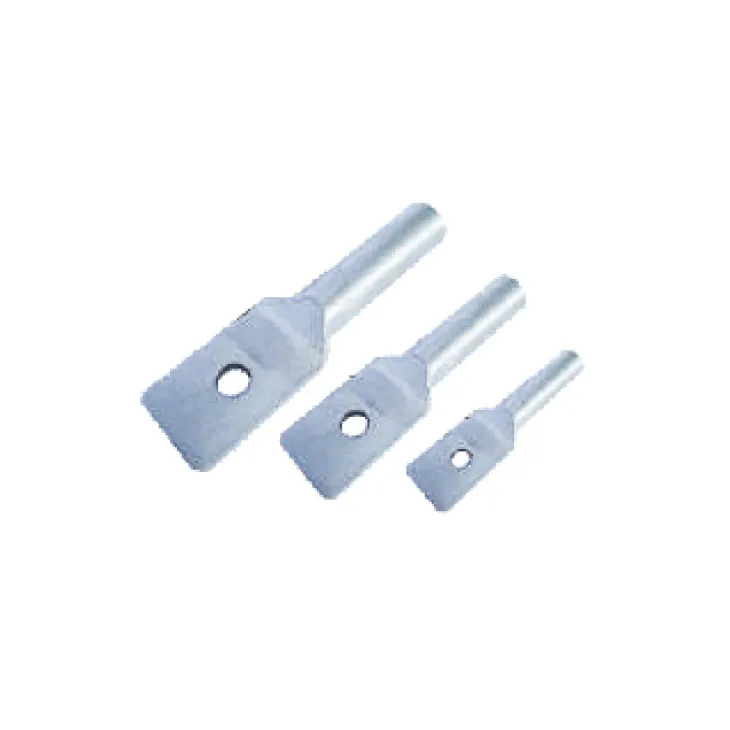

JDBG  earthing terminals for twisted wires are specifically designed to safely ground twisted pair wires in electrical installations. Its ergonomic design facilitates quick and easy installation, making it ideal for a variety of environments, from commercial buildings to residences. With JDBG Ground Terminals, professionals can rest assured that their electrical system is securely grounded, improving overall safety and compliance.



Parameters

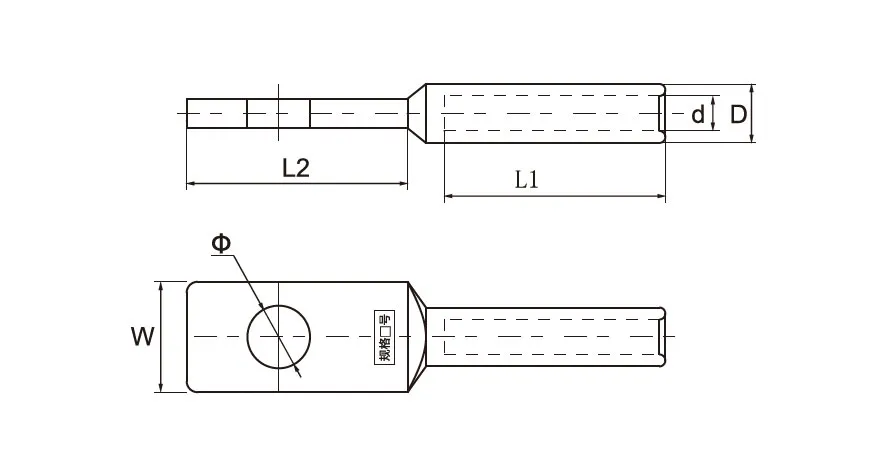

Item No. Wires Sizes (mm)
L1 L2 D d W Φ
JDBG-35 LBGJ-35 60 65 16 9.5 30 17
JDBG-50 LBGJ-50 60 65 18 11 30 17
JDBG-70 LBGJ-70 70 65 22 13 40 17
JDBG-80 LBGJ-80 70 65 22 13 40 17.5
JDBG-100 LBGJ-100 80 65 26 15 40 17.5
JDBG-120 LBGJ-120 80 85 26 16 50 18
JDBG-150 LBGJ-150 90 85 30 17.5 50 18



Note: made of aluminum
