DT-S Double Holes Copper Terminals for Cables are specially designed for cable connection. They have two independent wiring holes. Their unique structural design makes the wiring process easier and faster, and the wiring is firm and reliable. This product is widely used in power, communication, rail transportation and other fields to meet the high requirements of electrical connection.

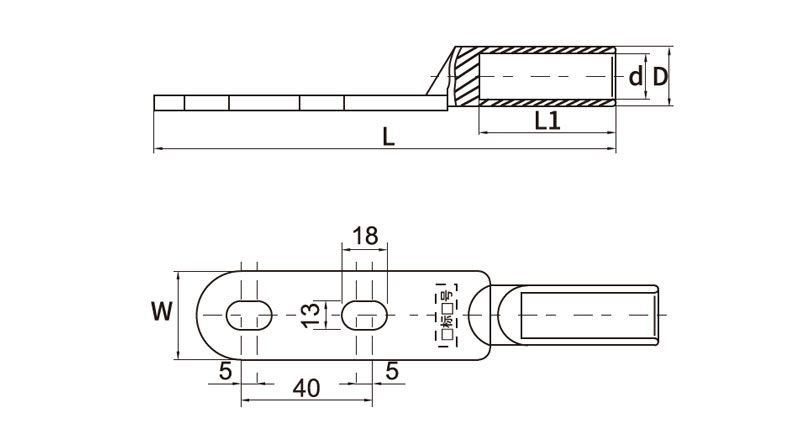

| Item No. | Sizes (mm) | ||||
| L | L1 | W | D | d | |
| DTS-10 | 110 | 34 | 24 | 11 | 5.5 |
| DTS-16 | 110 | 34 | 24 | 11 | 6 |
| DTS-25 | 110 | 34 | 24 | 11 | 7 |
| DTS-35 | 117 | 38 | 24 | 12 | 8.5 |
| DTS-50 | 127 | 43 | 26 | 14 | 9.5 |
| DTS-70 | 134 | 45 | 28 | 16 | 11.5 |
| DTS-95 | 140 | 50 | 30 | 18 | 13.5 |
| DTS-120 | 146 | 53 | 31 | 20 | 15 |
| DTS-150 | 155 | 56 | 35 | 22 | 16.5 |
| DTS-185 | 162 | 57 | 39 | 25 | 18.5 |
| DTS-240 | 168 | 61 | 40 | 27 | 21 |
| DTS-300 | 175 | 65 | 40 | 30 | 23 |
| DTS-400 | 183 | 70 | 40 | 34 | 26 |
| DTS-500 | 215 | 80 | 50 | 35 | 29 |
