DTLS double holes copper/aluminum terminals are designed for high-performance electrical connections. The terminals are made of high-quality copper and aluminum, which ensures maximum electrical conductivity and durability. The dual-hole feature allows for a variety of mounting options, making it ideal for a wide range of electrical applications. Suitable for use in both industrial and residential environments, these terminals provide a safe and reliable connection point.

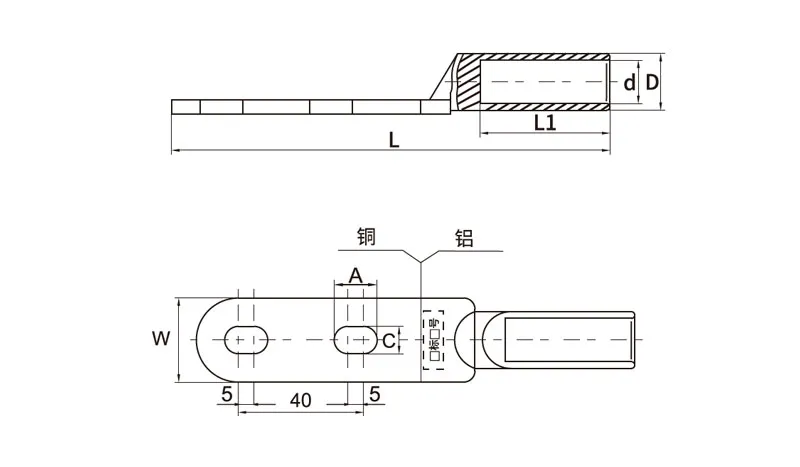

| Item No. | Sizes (mm) | ||||||
| L | L1 | C | A | W | D | d | |
| DTLS-10 | 110 | 30 | 10.2 | 15.2 | 19 | 12 | 5.5 |
| DTLS-16 | 112 | 32 | 10.2 | 15.2 | 19 | 12 | 6 |
| DTLS-25 | 114 | 34 | 10.2 | 15.2 | 19 | 12 | 7 |
| DTLS-35 | 120 | 40 | 10.2 | 15.2 | 19 | 14 | 8.5 |
| DTLS-50 | 127 | 42 | 10.2 | 15.2 | 23 | 16 | 9.5 |
| DTLS-70 | 138 | 47 | 13 | 18 | 26 | 18 | 11.5 |
| DTLS-95 | 144 | 50 | 13 | 18 | 28 | 21 | 13.5 |
| DTLS-120 | 148 | 53 | 13 | 18 | 30 | 23 | 15 |
| DTLS-150 | 156 | 55 | 13 | 18 | 34 | 25 | 16.5 |
| DTLS-185 | 165 | 58 | 13 | 18 | 37 | 27 | 18.5 |
| DTLS-240 | 170 | 60 | 13 | 18 | 40 | 30 | 21 |
| DTLS-300 | 179 | 65 | 13 | 18 | 40 | 34 | 23 |
| DTLS-400 | 190 | 70 | 14.5 | 19.5 | 50 | 38 | 26.5 |
| DTLS-500 | 210 | 75 | 14.5 | 19.5 | 50 | 42 | 29.5 |
