DTL series copper/aluminum terminals are designed for high conductivity and corrosion resistance and are suitable for a variety of electrical connection scenarios. Its unique combination of copper/aluminium material not only ensures good electrical conductivity, but also enhances corrosion resistance and extends service life.

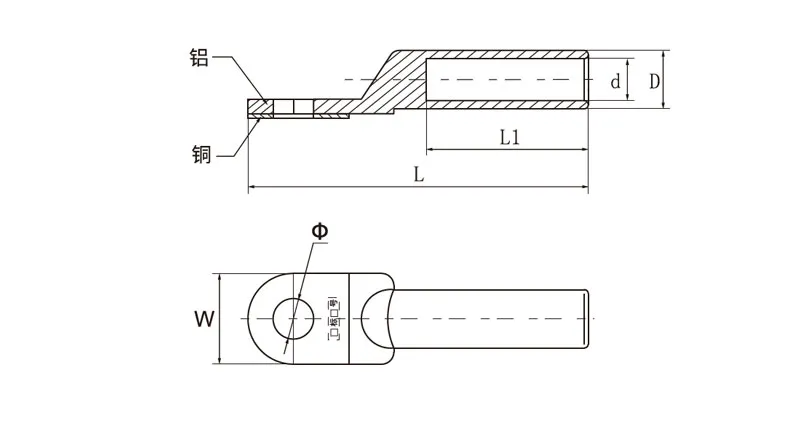

| Item No. | Sizes (mm) | |||||
| L | L1 | W | D | d | Φ | |
| DTL-16Q | 70 | 32 | 16 | 10 | 5.5 | 8.4 |
| DTL-25Q | 75 | 36 | 18 | 12 | 7 | 8.4 |
| DTL-35Q | 85 | 42 | 20 | 14 | 8.5 | 10.5 |
| DTL-50Q | 90 | 43 | 23 | 16 | 9.6 | 10.5 |
| DTL-70Q | 102 | 49 | 26 | 18 | 12 | 12.5 |
| DTL-95Q | 112 | 54 | 28 | 21 | 13 | 12.5 |
| DTL-120Q | 120 | 57 | 30 | 23 | 15 | 14.5 |
| DTL-150Q | 126 | 60 | 34 | 25 | 16 | 14.5 |
| DTL-185Q | 133 | 62 | 37 | 27 | 18 | 16.5 |
| DTL-240Q | 140 | 65 | 40 | 30 | 20 | 16.5 |
| DTL-300Q | 165 | 70 | 45 | 34 | 23 | 21 |
| DTL-400Q | 170 | 72 | 52 | 38 | 26 | 21 |
