DTL-4 Bolt Type Copper/Aluminum Terminals combine the advantages of copper and aluminum, with the excellent conductivity of copper and the lightness and corrosion resistance of aluminum. Its bolt connection method ensures the firmness and reliability of the connection and is widely used in industrial automation, power transmission and other fields.

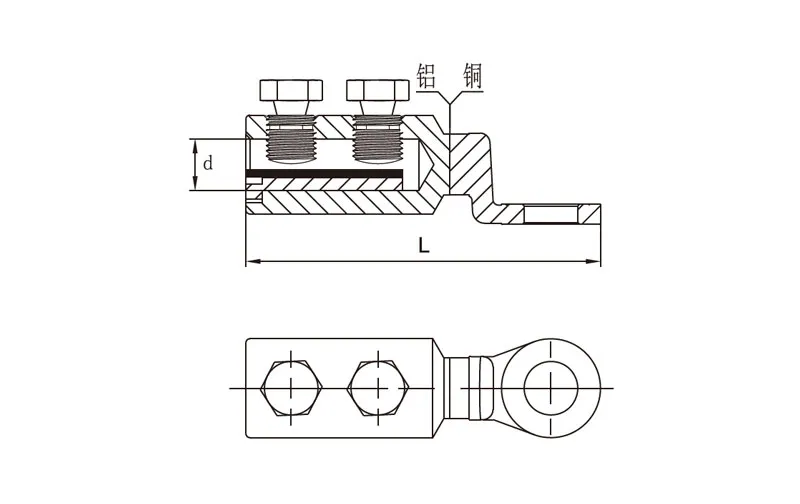

| Item No. | Cable range (mm²) |
Bolts number | Sizes (mm) | |
| L | d | |||
| DTL-4-16-95/12 | 16-95 | 2 | 86 | 13 |
| DTL-4-50-150/12 | 50-150 | 2 | 100 | 16 |
| DTL-4-50-150/16 | 50-150 | 2 | 100 | 16 |
| DTL-4-70-240/12 | 70-240 | 2 | 121.5 | 20 |
| DTL-4-70-240/16 | 70-240 | 2 | 121.5 | 20 |
| DTL-4-120-300/12 | 120-300 | 2 | 133 | 24 |
| DTL-4-120-300/16 | 120-300 | 2 | 133 | 24 |
