DT copper terminals-tube

Brand:SMS

Name:DT copper terminals-tube

FOB Port:Ningbo/Shanghai/Yiwu /Guangzhou/Shenzhen
Terms of Payment:T/T
Update:10/18/2023
Description

DT Copper Terminals-Tube is made of high-purity copper and has excellent electrical conductivity and corrosion resistance. Its unique tube design facilitates the insertion and fixation of wires and effectively prevents loosening and falling off. This product is widely used in various electrical equipment, such as motors, transformers, etc, and is a key component to ensure the stable operation of electrical systems.



Parameters

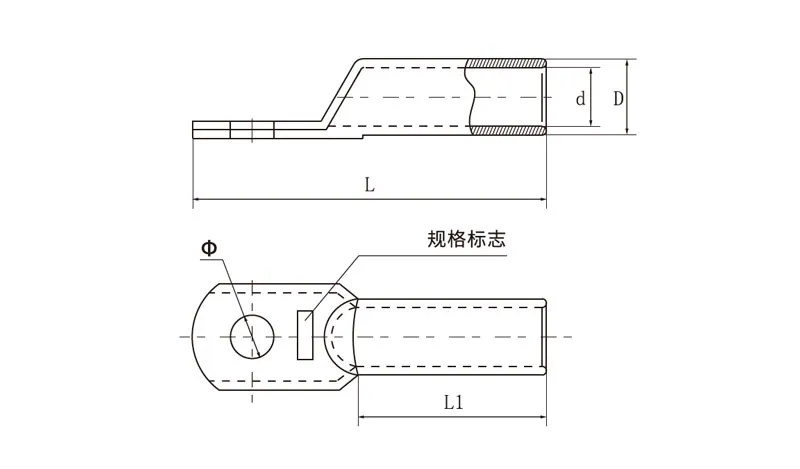

Item No. Sizes (mm)
L D d Φ
DT-10 50 8 5.5 6.5
DT-16 55 9 6.5 6.5
DT-25 60 10 7.5 6.5
DT-35 66 12 9.5 8.4
DT-50 72 14 11 8.4
DT-70 80 16 13 10.5
DT-95 87 18 14 10.5
DT-120 96 20 16 13
DT-150 103 22 17 13
DT-185 115 25 19 16.5
DT-240 120 27 21 16.5
DT-300 135 31 25 17
DT-400 150 34 27 17
DT-500 170 38 31 21
DT-630 210 45 36 21
