DTS double holes terminals for cables is designed for cable connection, with double-hole structure, its internal use of high-quality conductive materials to ensure stable and reliable current transmission. Suitable for a variety of harsh environments, widely used in electric power, communications, transportation and other fields, is an indispensable and important component of the electrical connection.

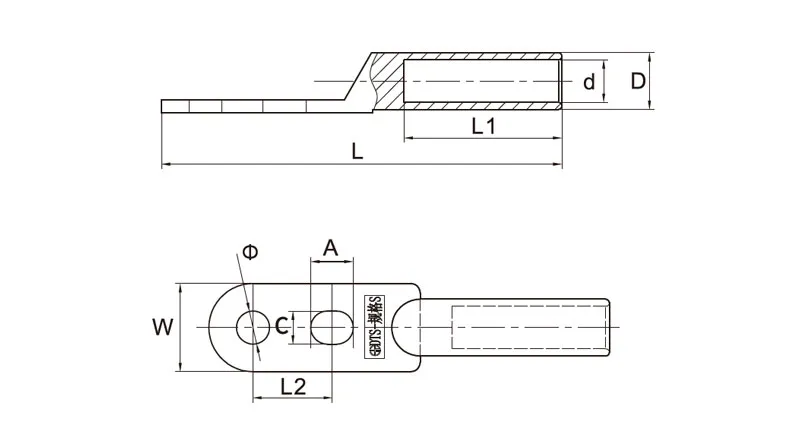

Item No. | Sizes (mm) | ||||||||
L | L1 | L2 | W | D | d | Φ | A | C | |
DT-150S | 139 | 54 | 30 | 34 | 22 | 16.5 | 14.5 | 17.5 | 14.5 |
DT-185S | 153 | 56 | 35 | 37 | 25 | 18.5 | 14.5 | 17.5 | 14.5 |
DT-240S | 161 | 60 | 35 | 40 | 27 | 21 | 14.5 | 17.5 | 14.5 |
DT-300S | 176 | 65 | 65 | 40 | 30 | 23 | 16.5 | 19.5 | 16.5 |
DT-400S | 182 | 70 | 70 | 50 | 34 | 26 | 16.5 | 19.5 | 16.5 |
