DL-4 Series Bolt Type Aluminum Terminal Blocks are widely used in various environments due to their lightness and corrosion resistance. Their unique bolt connection method ensures the firmness and reliability of the connection, while supporting a variety of wire specifications.
Parameters
| Item No. | Cable range (mm²) |

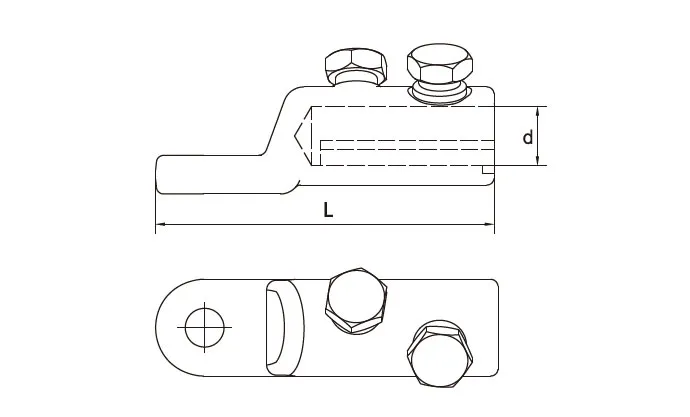

Bolt | Sizes (mm) | |
| L | d | |||
| DL-4-16-95/12 | 16-95 | 1 | 77 | 13 |
| DL-4-16-95/12-2 | 16-95 | 2 | 85 | 13 |
| DL-4-50-150/12 | 50-150 | 1 | 87 | 16 |
| DL-4-50-150/12-2 | 50-150 | 2 | 100 | 16 |
| DL-4-50-150/16 | 50-150 | 1 | 87 | 16 |
| DL-4-50-150/16-2 | 50-150 | 2 | 100 | 16 |
| DL-4-70-240/12 | 70-240 | 2 | 115 | 20 |
| DL-4-70-240/16 | 70-240 | 2 | 115 | 20 |
| DL-4-120-300/12 | 120-300 | 2 | 126 | 24 |
| DL-4-120-300/16 | 120-300 | 2 | 126 | 24 |
| DL-4-185-400/12 | 185-400 | 2 | 142 | 26 |
| DL-4-185-400/16 | 185-400 | 2 | 142 | 26 |
