The Waterproof junction box is apply in protect cables connection underground for wires&cables,communication cable and signal cables Now more and more needs of burycables under ground with City electric construction developing,So solution of cableconnection,tap,waterproof is important for present market of power cable,communication cable and signal cables. The Tap cable junction box of pressureencapsulating compound have successful application in electric system for many years inoccident.And also used in homeland. Now we are exclusive manufacturer of the tapcable junction box of pressure encapsulating compound. It is offer more options forcustomers to purchasing these products.The performances of the tap cable junction boxof pressure encapsulating compound.
1 Apply in all LV power cables , communication cables and signal cables.
2 Safe, effective and quickly operation with advanced pressure encapsulating compoundtechnology.
3 Advanced cable tap connector for save room and cables.
4 Perfect waterproof & insulated performance and excellent mechanical protection.
This connection box has excellent performances,simplified construction technology.good anti-theft feature, and widely used in power system, streetlamp, and constructionfield , details as follows:
1. Good anti-theft feature

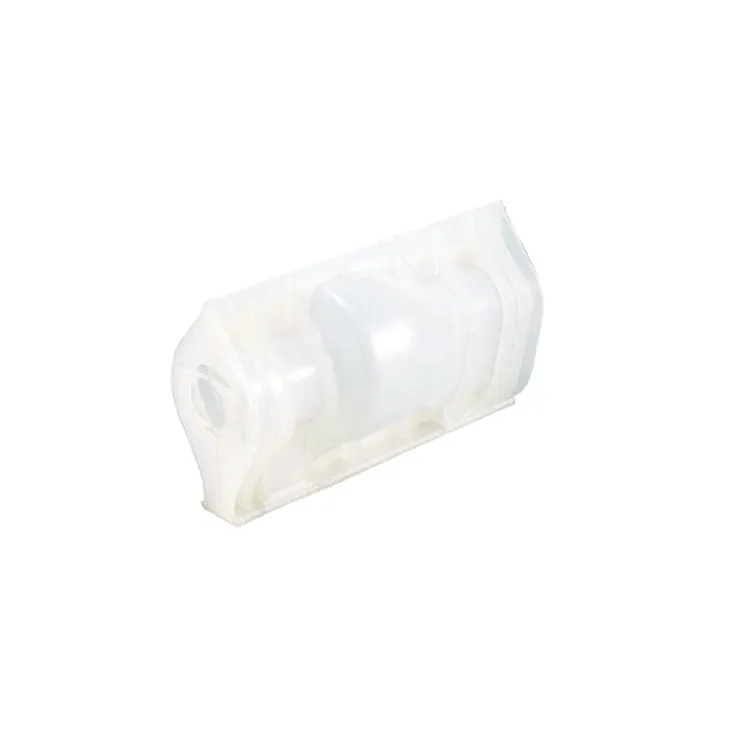

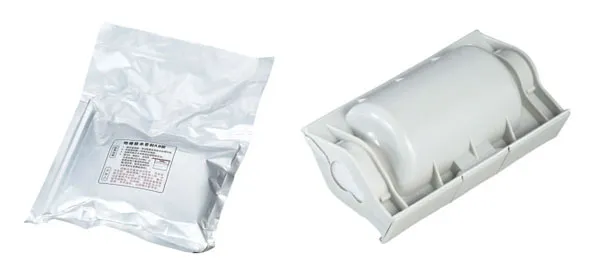

lt utilizes the mechanical firm transparent bushing sealed by electric silicon glue, doesnot need dig well, not require to cut off the cable, after the cable is connected and glue isfilled, sealing is very stable, directly buried underground, convenient installation andanti-theft, waterproof, high insulation performance.
2. Waterproof, insulation, high reliability

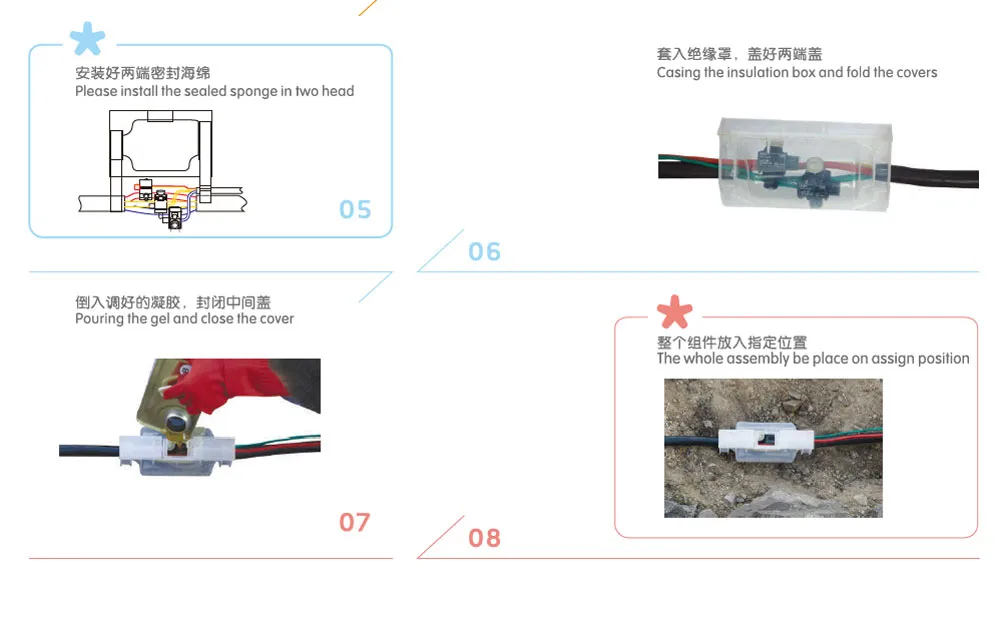

The application of glue-filled connection, solve the problem of waterproof andinsulation under the ground. lt will solidify after filling electric silicon glue about 15-30 minutes. It is suitable for working in the damp well full of stagnant water. The cableconnection point is not exposed with excellent insulation performance, service lifefurther longer than cable.
3.Reduce accidents, anti-theft.

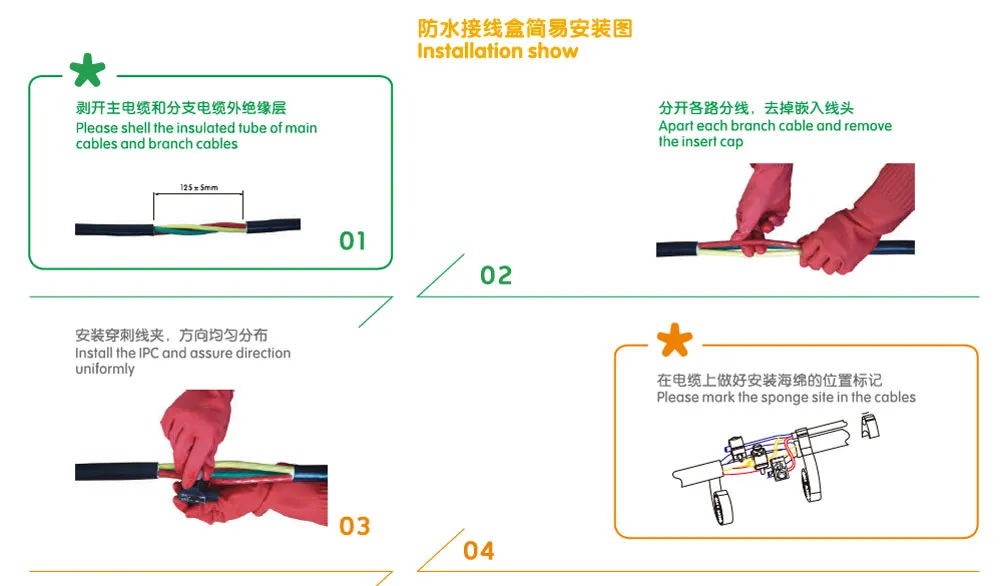

Glue-filled connection, changes the former operation method of broken head of cable instreetlamp, as well-known, more connections will have more hidden risks, more difficultto detect the fault, it often needs cut off the power supply for the whole line. This glue-filled connection need not cut off cable and peel off insulation layer,improve thereliability of service. At present the related management department executed manymethods to prevent cable being stolen, including expensive monitoring system, even so,the result is not good.But when cable is connected by filling glue, main cable is buriedunder ground, no exposed parts,only branch leading wire connected to streetlamppole, consequently the cable is difficult to be stolen.
4.Save the cost for cable layout
Glue filled branch connection can adopt Al core cable, further lessen the investmentcapital, improve work and economic efficiency. Due cable is completely buriedunderground, the cables can't be stolen, further save maintenance cost.
Type | LxWxH (mm) | Main line section (mm) |
Branch section (mm) |
Protection degree | Remarks |
FSH-190/115 | 190×115×75 | 30 | 15 | IP68 | 3只JCF1-35/4 2只JCF1-50/35 |
FSH-230/130 | 230×130×100 | 30 | 15 | IP68 | |
FSH-305/175 | 305×175×130 | 55 | 36 | IP68 |
