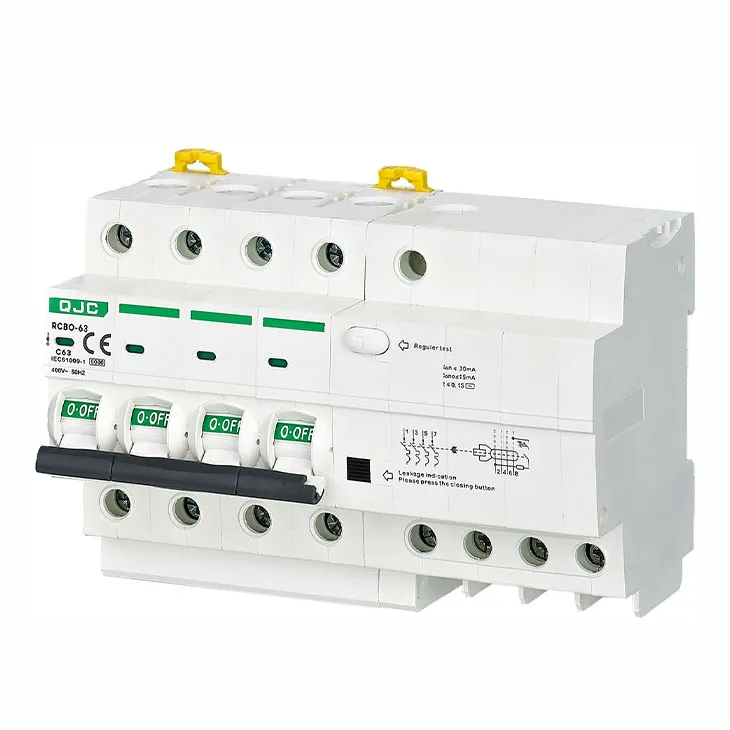

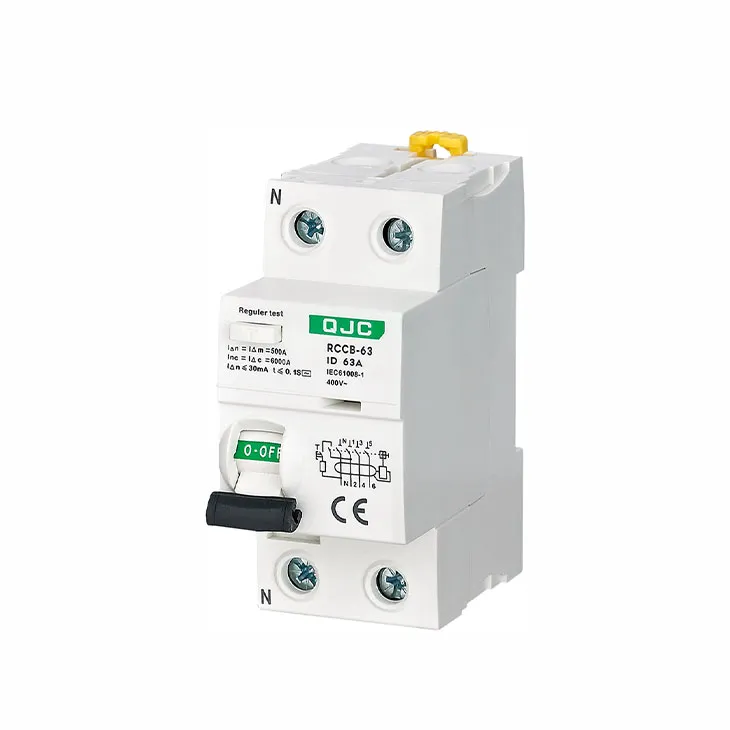

Application

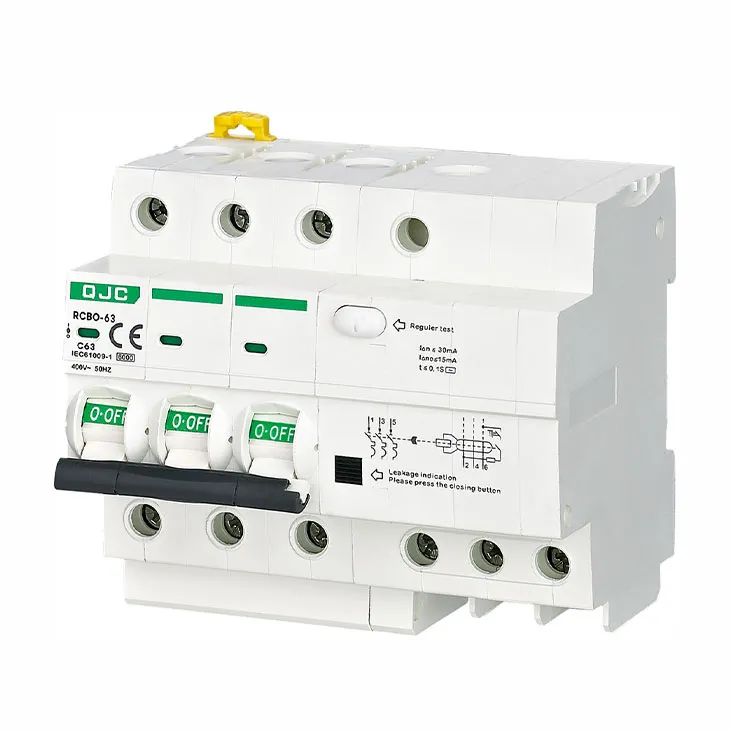

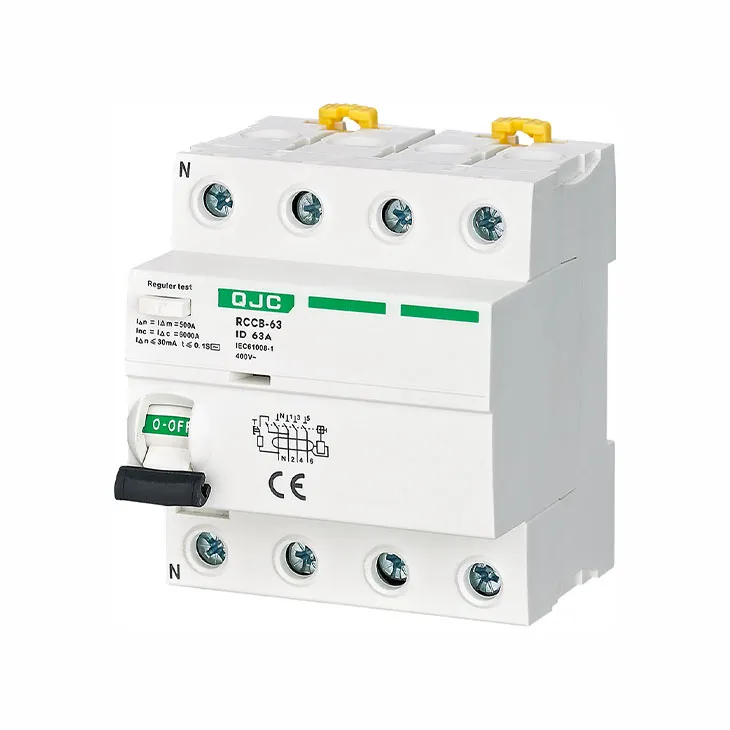

QJ65LE-63 is applicable to a line of Ac 50/60Hz, rated votage 230V for single pole two-wire, 2-pole or 400V for 3-pole, 3-pole 4-wire, 4-pole and rated curent up to 40A. It can protect the line and motor from ovenoad and short circuit, it can also be used for infrequent line conversion and infreguent motor start. it conforms with the standards of lEC61009.

Main Technical Parameter

Applicable Conducting Wire

Residual Current Breaking Time

The Over-Current Protection Property

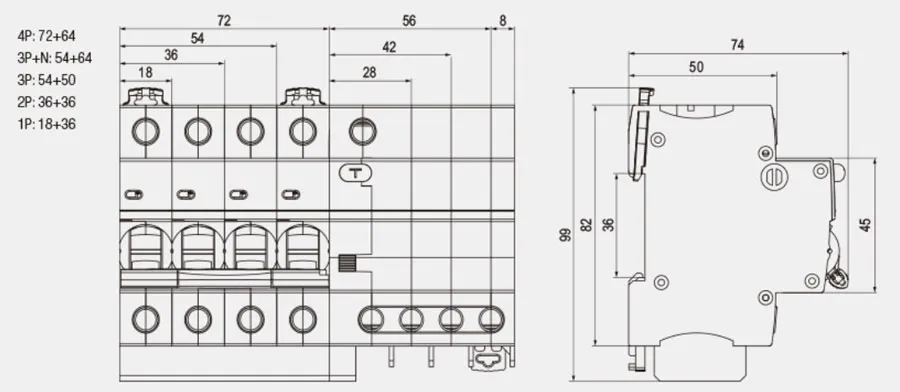

Dimension

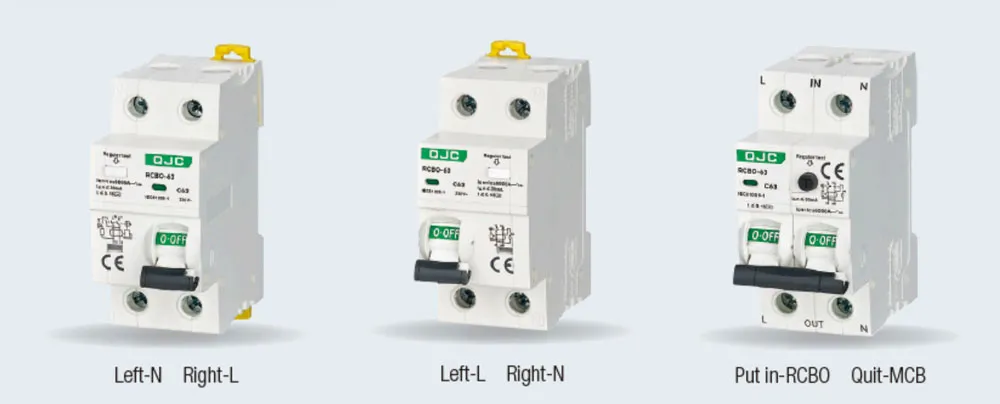

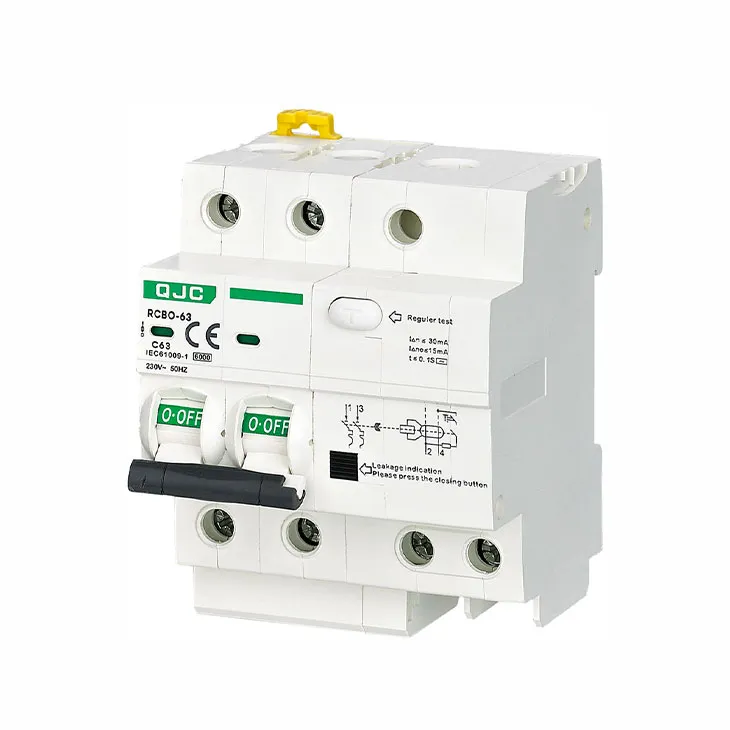

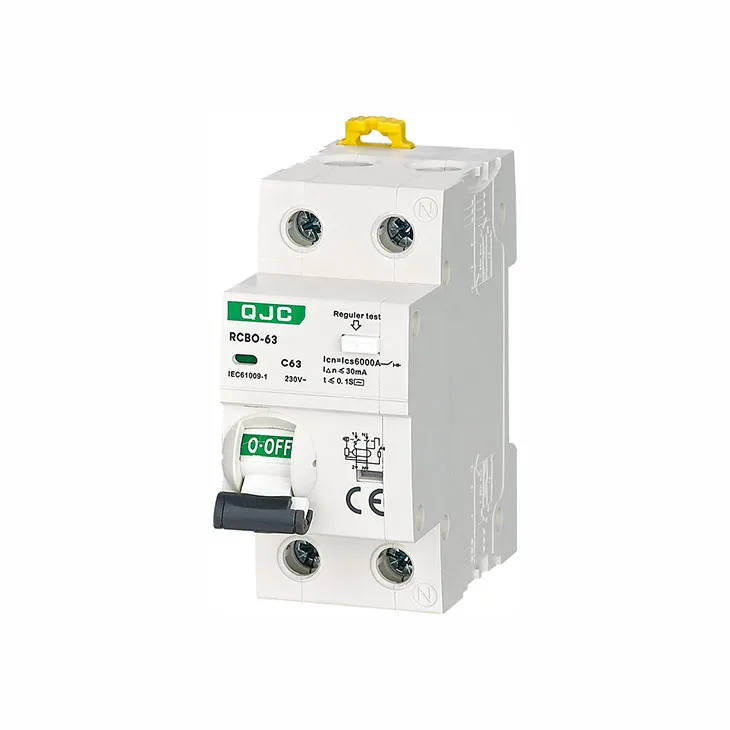

QJI65-63 Series Residual Current Circuit Breaker (RCBO)

Application

0Jl65-63 series residual current circuit breaker are mainly used in circuit, of AC50/60Hz, rated votage up to 230V, rated curen up to 40A for protection of personal electric shock hazard with overload protection and short circuit protection,also can infrequently switchover electric equipment and iluminating line under normal conditions, esppecially suitable for industrial and commercial lighting distribution system.

Conformity with the standard GB16917.1 and lEC60947-2

Classfication

1. Rated current: 6, 10, 16, 20, 25, 32, 40, 50, 63(A)

2. Poles: 2P (with a protection pole)

3. Type of instantaneous release: C; (5In-10ln)

Normal Operation Conditions

1. Ambient air temperature

   Ambient air temperature ranges from -5℃ to 40℃ ,not exceeding 35℃ averagely in 24 hours.

2. Location: Installation location can not exceed 2000 meters above sea level

3. Air conditions

   Relative humidity in the instalation place can not exceed 50% when the air reaches the highest temperature 40°c, the average minimum temperature when it is the wettest can not exceed 20°c. Relative humidity not exceed 90%.

4. installing categories: Class ll Class lll.

5. installation Pollution Grade: grade ll.

6. instaling type: mounted by standard rail track

7. installing condition: installation location of the external magnetic field strength should not be in any direction to magnetic field strength of more than 5 times

8. Wiring: Tighten the screws to compress the wire

Construction Characteristic & Operating Principle

Pullthe handle of the leakage circuit breakers to the ON position, through mechanical contacts to static contact agencies to promote reliable contact with the circuit. When the circuit with overload fault, overload curent bimetal bend and push the latch locking mechanism makes the mechanical reset, the moving contacts quickly let the static contact,so that to achieve sub-line functions; when short- circuit fault occurs , the short-circuit current make instantaneous release action, pushing the lock mandrel core mechanical action to achieve the lock breaking function; when leakage and electric shock occurs, the signal from zero sequence sensor makes the thyristor leakage release core action , puter push the circuit breaker trip to cut of the power leakage circuit breaker in a short time, thereby achieve leakage protection.

Structural Features

1. Small, tight structure, price is better than similar products.

2. Housing and some functional parts are made of high fire-resistant.heat resistant, impact resistant material.

3. Directly with the zero wire installation,avoid the electric shock hazard which caused by zero line connection errors

4. Using the latest circuit design and high-performance electronic components, has strong abilty to withstand when the impact of current and surge of over-voltage.

5. Mounted by standard rail track, convenient and save time.

Main Technical Parameter

1. Main Technical Parameter (see table 1)

2. Time-current character (see table 2)

3. Residual current protection character

3.1. Rated residual operating current lΔn: 30mA. 50mA

3.2. Rated residual non-operating curent lΔno: 15mA, 25mA

3.3. Rated residual making and breaking capability lΔm: 2000A

3.4. Residual current breaking time (see table 3)

4. Mechanica/Electric lifetime (times): Electric lifetime: 2000; Mechanical life: 4000

5. Nominal cross-section of wire (see table 4)

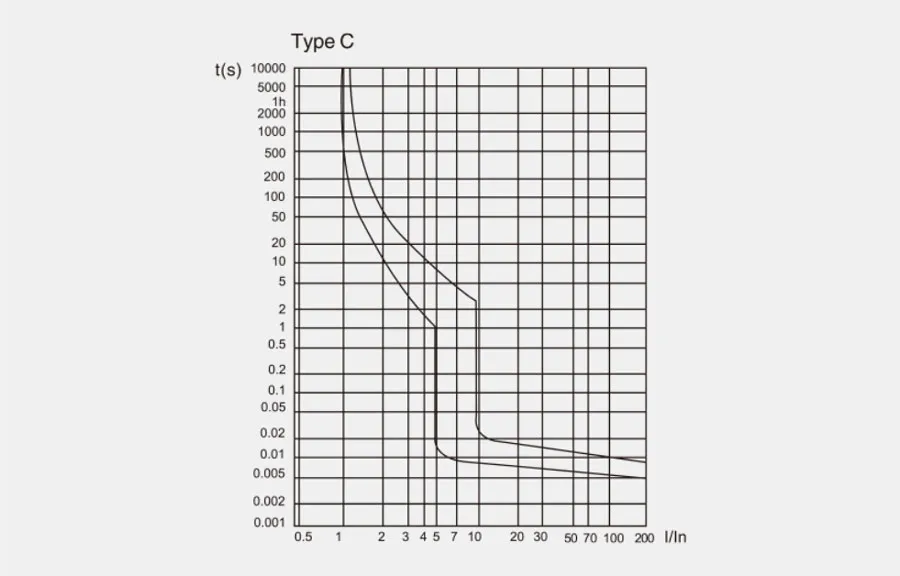

6. Performance curve of release (see figure 1)

Table1

Table2

Table3

Table4

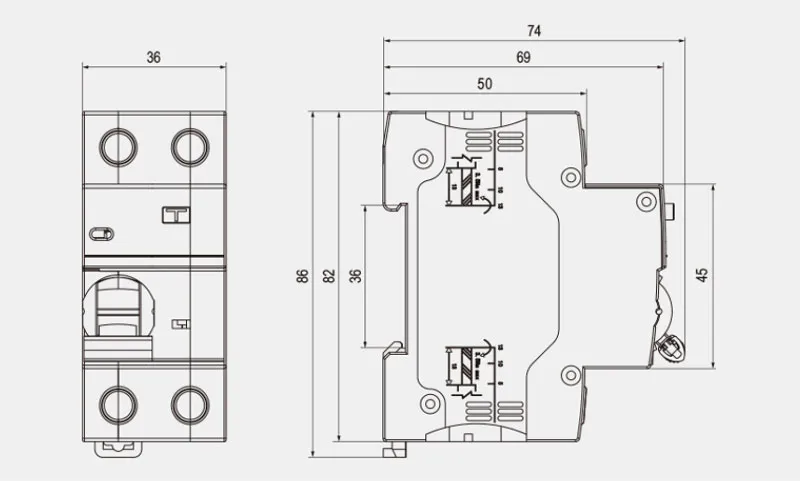

Dimension

Use and Maintenance

a. Push up the handle to the position "ON" to switch on, Pull down the handle to the position "OFF" to switch off.

b. Residual current protection features is tested and adjusted by the manufacturer,users can not adjust the product at random during usage.

c. After running for a period of time, the ELCB should be inspected periodically (Every other month), the test button in power on position to confimm the residual current protective properties is reliable or not.

d. Zero wire must connect to N side to keep its normal work and protective effectively.

Attention

a. ELCB must not be wetted of soaked by rain, snow or waterduring of transportion, storage and usage.

b. The product can't protect the risk of electric shock that caused by two lines contact protection circuit meantime.

c. The products must not test by short circuit between live wire and ground in case of electric shock hazard.

Order Notice

In order you need attention:

- Procuct model and name, Example: RCB0-63 residual-current circuit breaker;

- The rated curent, Example: 20A;

- Number of pole and wire , Example: single pole two wire;

- Type of instantaneous release, Example: C type

- The rated residual current, Example: 0.03A;

- Order quantity, Example: 50pcs;
