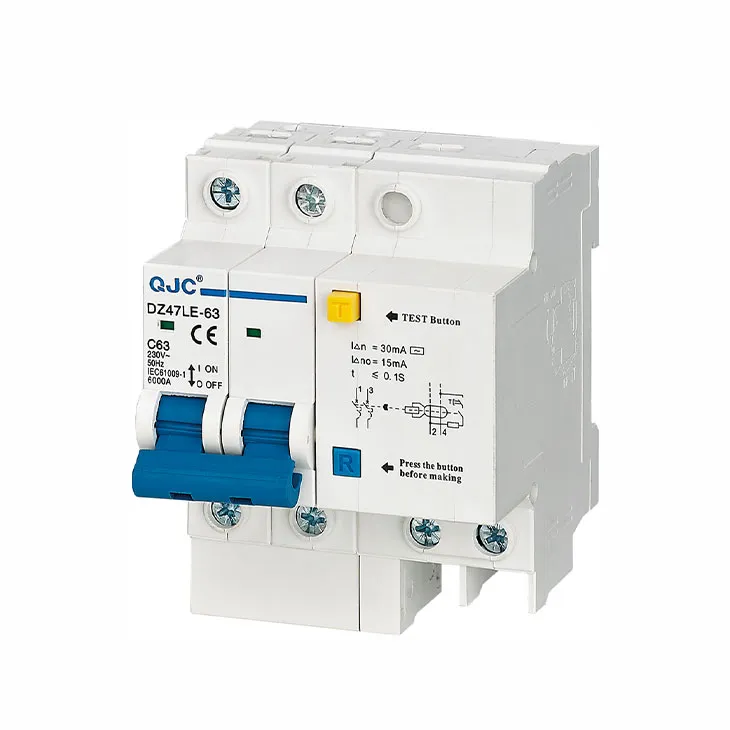

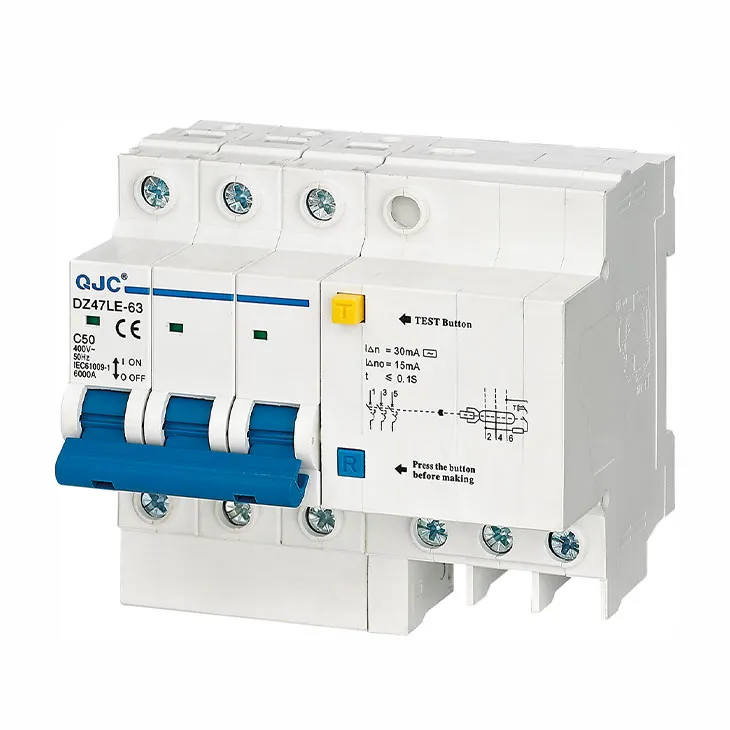

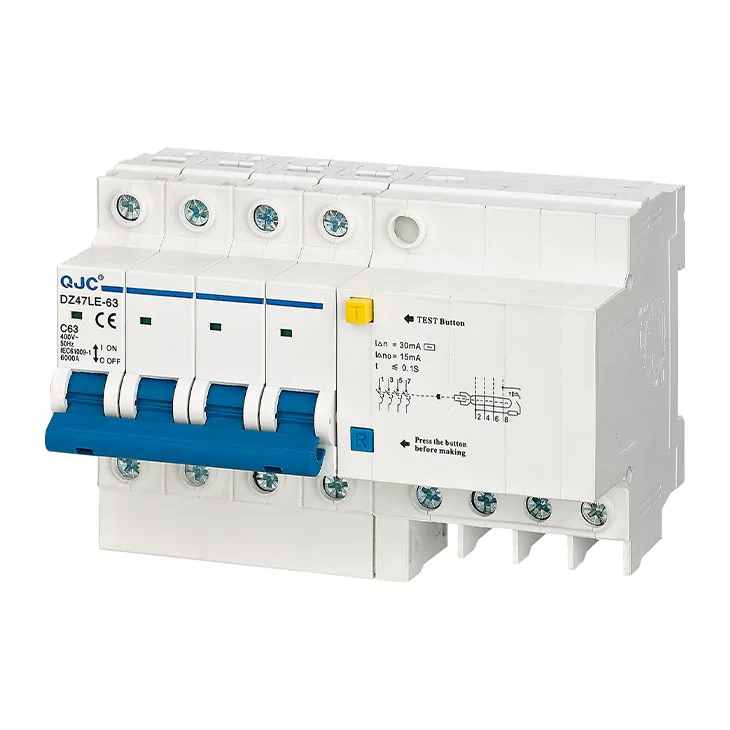

DZ47LE-63 is applicable to a line of AC 50/60Hz, rated voltage 230V for single pole two-wire, 2-pole or 400V for 3-pole, 3-pole 4-wire, 4-pole and rated curent up to 40A. it can protect the line and motor from overload and short circuit. it can also be used for infrequent line conversion and infrequent motor start. it conforms with the standards of lEC61009.
| Type | DZ47LE-63 | |
| Pole | 1P+N, 2P | 3P, 3P+N, 4P |
| Rated current (A) | 6, 10, 16, 20, 25, 32, 40, 50, 63 | |
| Rated voltage (V) | 230/240 | 400/415 |
| Rated short circuit breaking capacity Icn(kA) | 6-32A:6/40-63:4 | |
| Rated residual making/breaking capacity IΔm(A) | 2000 | |
| Rated residual action current IΔn(A) | 0.03, 0.05, 0.1, 0.3 | |
| Rated residual non-action current IΔno(A) | 0.5 IΔn | |
| Rated current (A) | 1-6 | 10 | 16,20 | 25 | 32 | 40,50 | 63 |
| Norminal cross section of wire (mm²) | 1 | 1.5 | 2.5 | 4 | 6 | 10 | 16 |
1. Ambient air: -5℃~+40℃, 24h within an average of not more than +35℃;
2. Altitude: not more than 2000m;
3. Atmospheric conditions: The air relative humidity at the installation site should not exceed 50% at +40℃, and the relative humidity should not exceed 90% when the monthly average minimum temperature of the wettest month does not exceed +25℃.
4. Installation categories: Ⅱ, Ⅲ grade;
5. Pollution Degree: Grade 2;
6. Installation type: the use of standard rail installation;
7. Installation conditions: small disconnector general vertical mounting handle up for the power position, the installation should be no significant impact and vibration.
| Model | A | B | C | D | 1P+N | 2P | 3P | 3P+N | 4P |
| DZ47LE-63 | 39 | 30 | 21 | 6 | 18+27 | 36+27 | 54+36 | 54+45 | 72+45 |
